Exterior Mirror Blind Spot (BLIS)/Cross Traffic Alert (CTA) LED LH

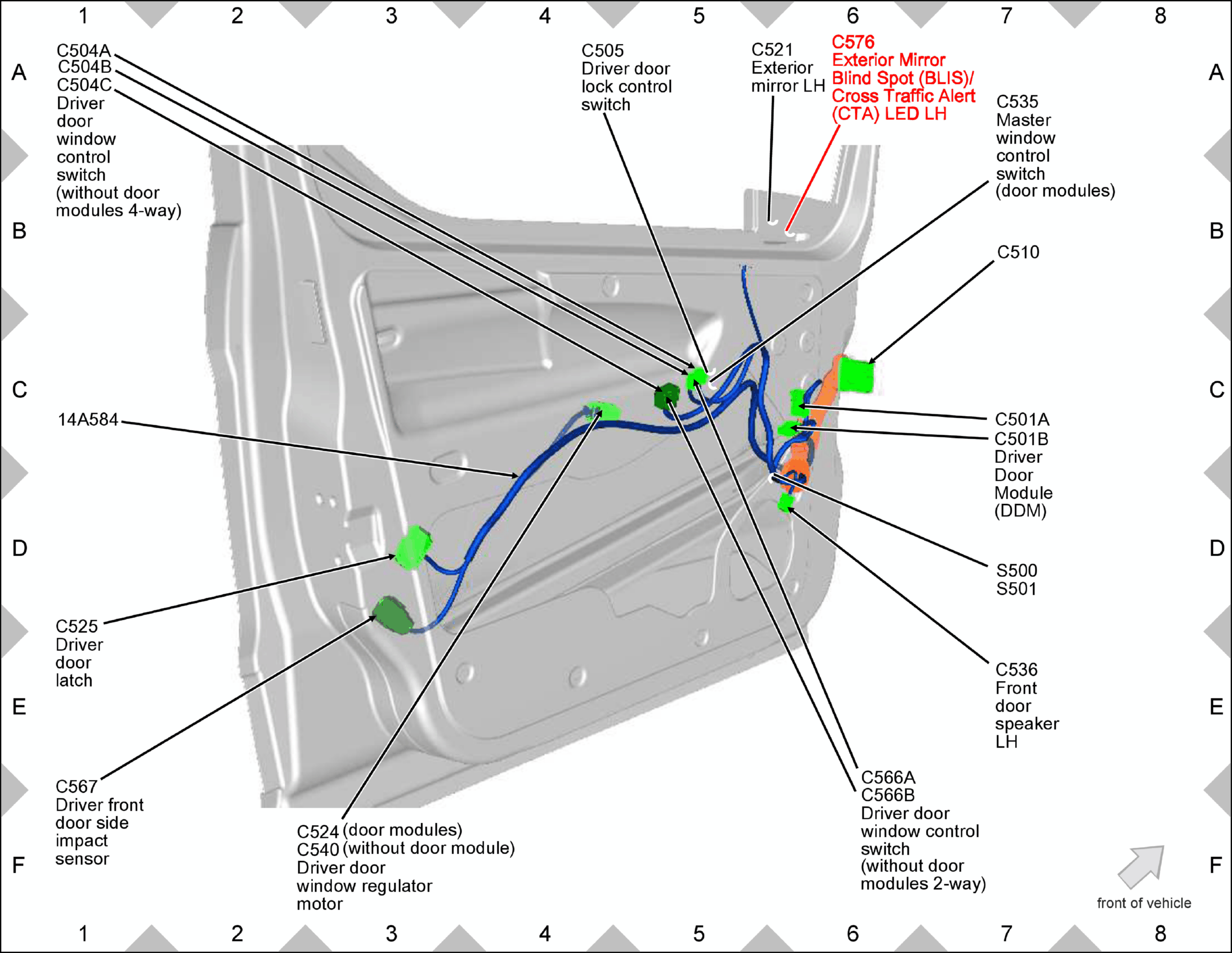

Fig 1: Exterior Mirror Blind Spot (BLIS)/Cross Traffic Alert (CTA) LED LH Components Location

GFDW64183

Courtesy of FORD MOTOR COMPANY
