Cylinder Head Temperature (CHT) Sensor (1.6L GTDI)

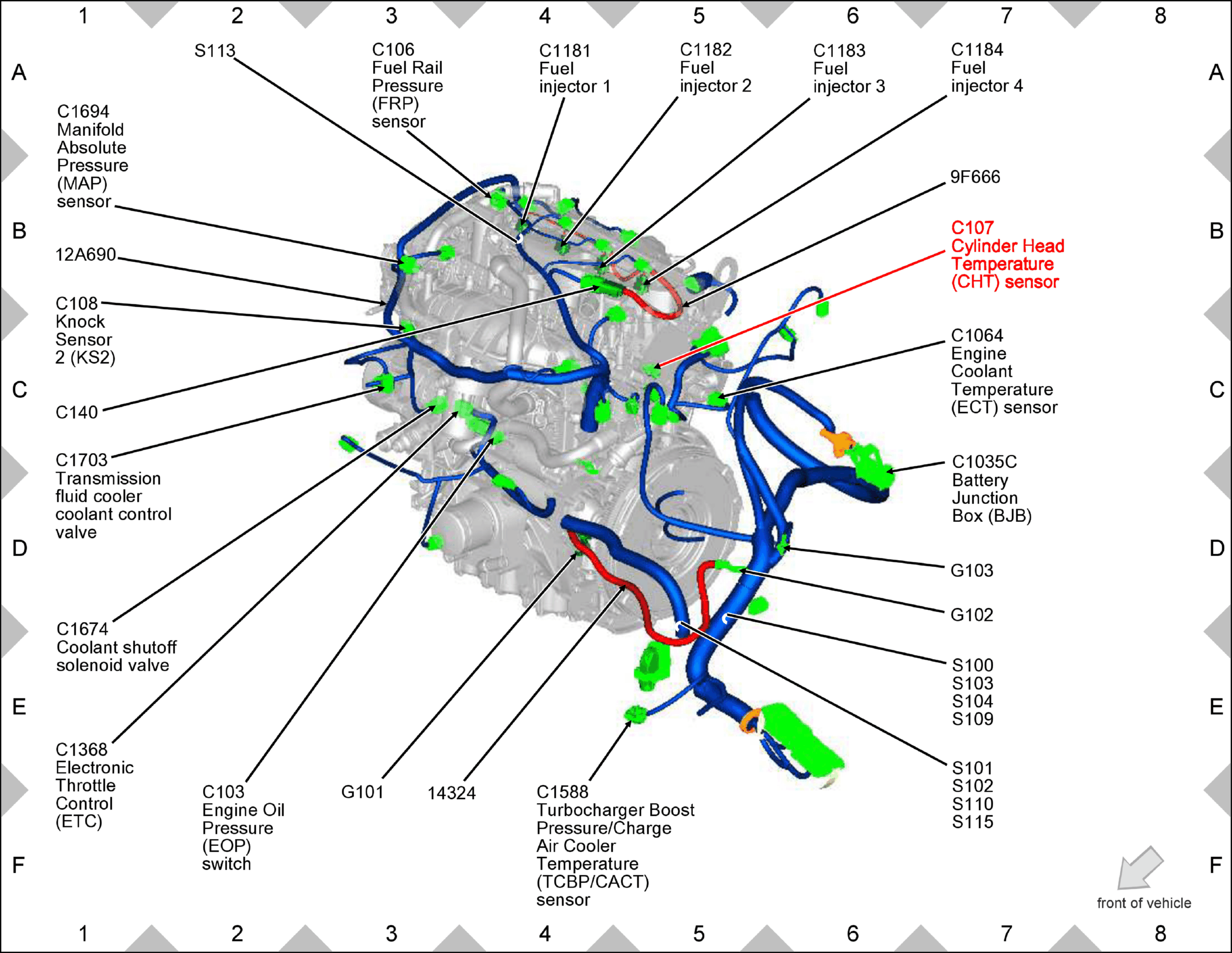

Fig 1: Cylinder Head Temperature (CHT) Sensor (1.6L GTDI) Components Location

GFDW64137

Courtesy of FORD MOTOR COMPANY
