Camshaft Position 12 (CMP12) Sensor (1.0L)

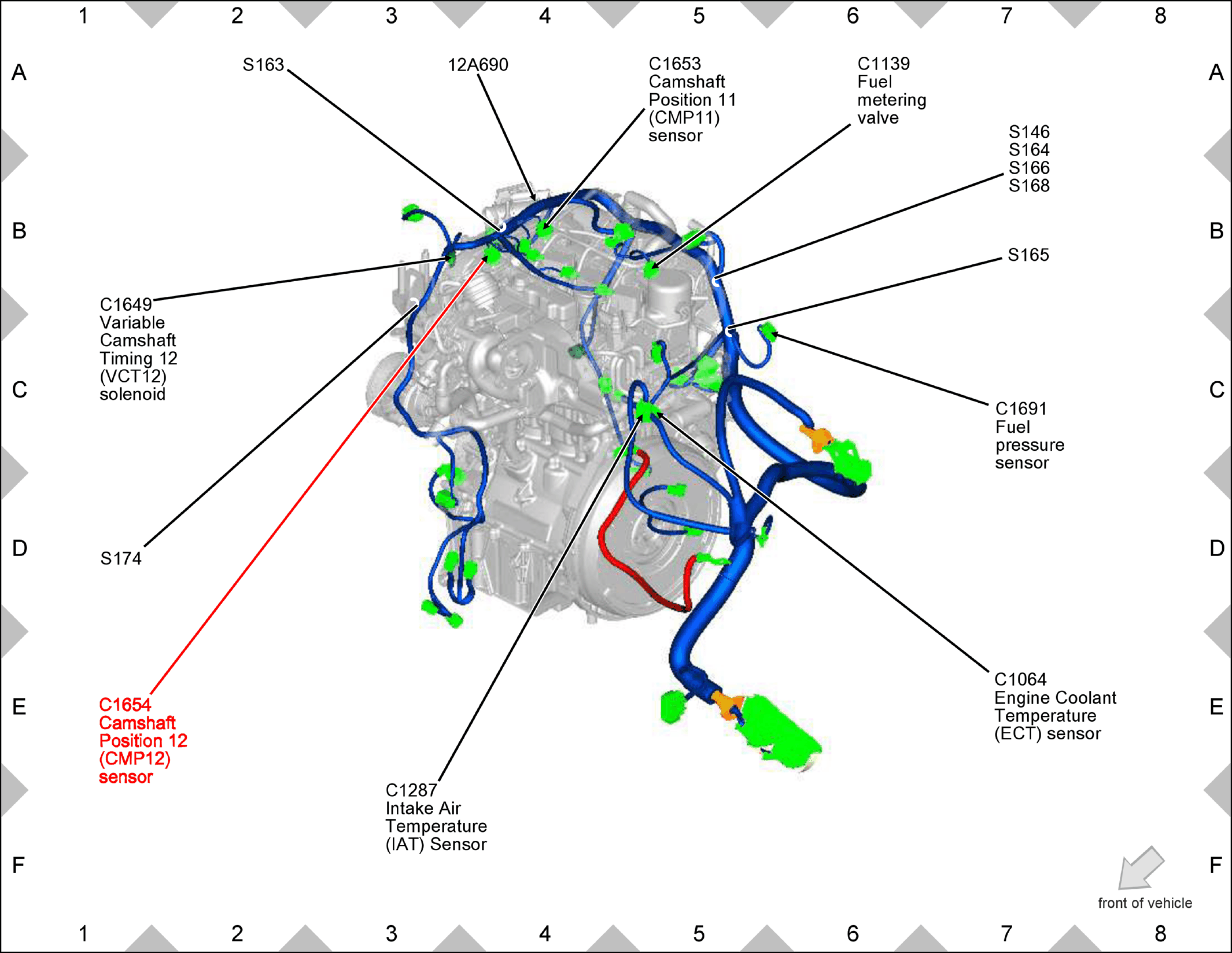

Fig 1: Camshaft Position 12 (CMP12) Sensor (1.0L) Components Location

GFDW64120

Courtesy of FORD MOTOR COMPANY
