Crankshaft Front Seal: Installation

  1. NOTE: Make sure that a new component is installed.
    NOTE: Lubricate the crankshaft front seal and the crankshaft pulley with clean engine oil.

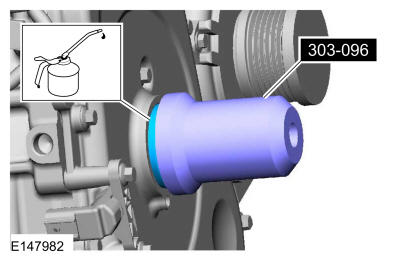

    Using the special tools, install the crankshaft front seal. Use Special Service Tool: 303-096 (T74P-6150-A) Installer, Camshaft Front Oil Seal.

    Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

    GFD214412Courtesy of FORD MOTOR COMPANY
  2. Install the crankshaft pulley. Refer to: Crankshaft Pulley .
