Removal And Installation: Camshafts: Removal

Remove the VCT unit. Refer to: Variable Camshaft Timing (VCT) Unit .
Remove the bolt and the VCT oil control solenoid.

Courtesy of FORD MOTOR COMPANY

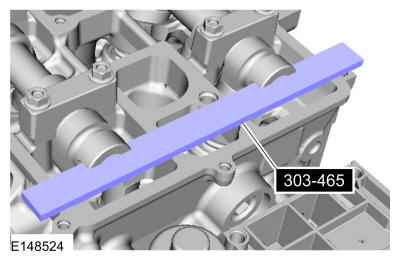

Remove the Camshaft Alignment Tool from the rear of both of the camshaft slots. Remove Special Service Tool: 303-465 Tool, Camshaft Align Timing.

Courtesy of FORD MOTOR COMPANY
NOTE: Failure to follow the camshaft loosening procedure can result in damage to the camshafts.

NOTE: Mark the location and orientation of each camshaft bearing cap.

NOTE: Mark the location of the camshafts prior to removal.

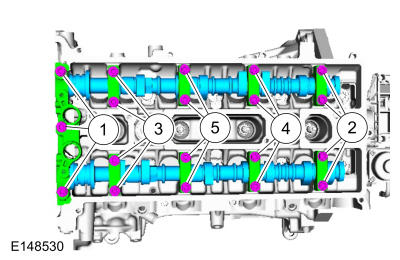

Loosen the camshaft bearing cap bolts, in sequence, one turn at a time until all tension is released from the camshaft bearing caps.

Fig 1: Camshaft Loosening Sequence

Courtesy of FORD MOTOR COMPANY
