Connector End View (C914) - AUTOLAMP AND RAIN SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C914	AUTOLAMP AND RAIN SENSOR	BK	14G540 /14335	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBP01 (BU)	22	FUSE - 1 OR CIRCUIT BREAKER	N/A
2	GD338 (BK-WH)	22	GROUND - TUNNEL # 2ND STUD	N/A
2	GD338 (BK-WH)	20	GROUND - TUNNEL # 2ND STUD	city safe	N/A
3	VRW26 (BN-YE)	22	CTRL MOD. - RAIN SENSOR LIN BUS	N/A

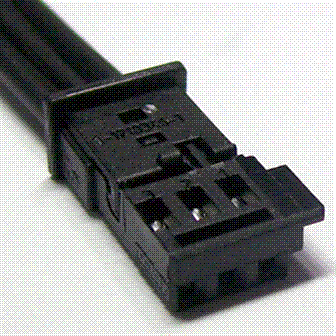

Available Pigtail Kits

Pigtail Kit Part Number WPT-1096

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-ZA

Gauge:

18

Pin material:

Tin (greased)

Cavities:

3

Vehicle Uses:

• Sensor - Rain
