Connector End View (C1561) - FUEL INJECTOR 1

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1561	FUEL INJECTOR 1	12A690			9F593	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
1L2T-14474-MA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RE205 (YE-BU)	14	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) -	1.6L DV6C	1L2T-14474-MA
2	CE205 (GN-BU)	14	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) +	1.6L DV6C	1L2T-14474-MA

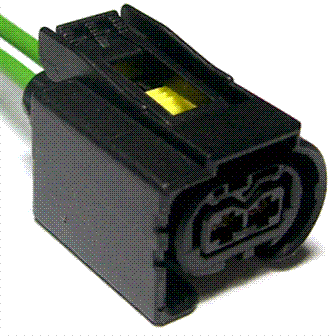

Available Pigtail Kits

Pigtail Kit Part Number WPT-1331

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-BA

Gauge:

16

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Alternator
