Connector End View (C1532A) - HEATED WINDSHIELD ELEMENT RH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1532A	HEATED WINDSHIELD ELEMENT RH	BK	14K733	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBB35 (YE-GY)	10	FUSE - 35 OR CIRCUIT BREAKER	N/A

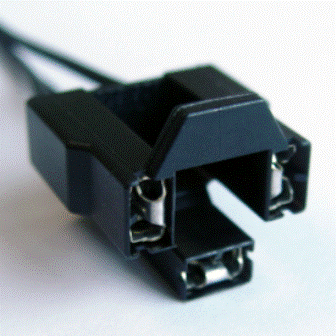

Available Pigtail Kits

Pigtail Kit Part Number WPT-801

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-RSA

Gauge:

16

Pin material:

Tin

Cavities:

3

Vehicle Uses:

• Relay - Flasher
