Connector End View (C801) - WINDOW CONTROL SWITCH, RIGHT REAR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C801	WINDOW CONTROL SWITCH, RIGHT REAR	BK	14026	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPW08 (BK)	22	CTRL MOD. - POWER WINDOW SWITCH REAR RIGHT ILLUMINATION	N/A
2	CPW18 (BK)	22	CTRL MOD. - POWER WINDOW SWITCH REAR RIGHT ILLUMINATION	N/A
3	CPW17 (BK)	22	CTRL MOD. - POWER WINDOW SWITCH REAR RIGHT ILLUMINATION	N/A
4	RPW09 (BK)	22	CTRL MOD. - POWER WINDOW SWITCH REAR RIGHT RETURN	N/A

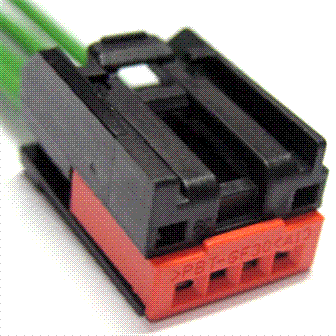

Available Pigtail Kits

Pigtail Kit Part Number WPT-1139

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-PRC

Gauge:

18

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Connector - Audio Input
• Lamp - CHMSL (Center High Mount Stop Lamp)
• Module - Anti-theft
• Module - Power Moonroof
• Sensor - Steering Wheel Position
• Switch - 4x4 Control
• Switch - Clutch Pedal Position
• Switch - Deck Lid / Lift Gate Ajar
• Switch - Door Lock (LH)
• Switch - Door Lock (RH)
• Switch - Lift Gate Glass Ajar
• Switch - Message Center
• Switch - Moon Roof/Sun Roof
• Transceiver - Passive Anti-Theft (PATS)
