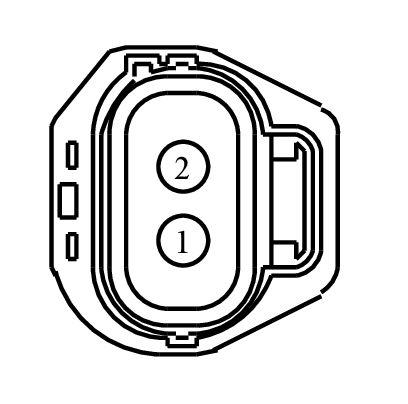

Connector End View (C703) - POWER WINDOW MOTOR, LEFT REAR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C703	POWER WINDOW MOTOR, LEFT REAR	BK	14027	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPW22 (BK)	14	CTRL MOD. - POWER WINDOW SWITCH REAR RIGHT ILLUMINATION	N/A
2	CPW21 (BK)	14	CTRL MOD. - POWER WINDOW SWITCH REAR RIGHT ILLUMINATION	N/A

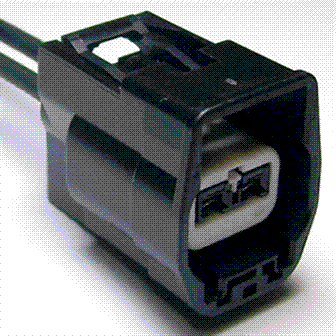

Available Pigtail Kits

Pigtail Kit Part Number WPT-1245

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BLA

Gauge:

12

Pin material:

Tin

Cavities:

2

Vehicle Uses:

• Motor - Power Window - LH - Front
• Motor - Power Window - RH - Front
