Connector End View (C475) - HIGH MOUNTED STOP LAMP

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C475	HIGH MOUNTED STOP LAMP	BK	13B472	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	GD339 (BK-YE)	20	GROUND - TUNNEL # 2ND STUD	N/A
2	CLS17 (YE-GY)	20	CTRL MOD. - SIDE MARKER REAR RIGHT	N/A

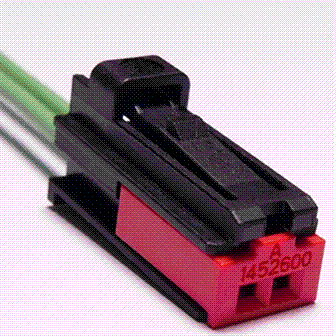

Available Pigtail Kits

Pigtail Kit Part Number WPT-1586

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-ABB

Gauge:

20

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Heater - PTC
• Indicator - Passenger Airbag Deactivation (PADI)
• Lamp - CHMSL (Center High Mount Stop Lamp)
• Mirror - Vanity
• Module - Heated Steering Wheel
• Switch - Park Brake
• Switch - Visor
