Connector End View (C9012) - AUTO-DIMMING INTERIOR MIRROR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C9012	AUTO-DIMMING INTERIOR MIRROR	NA	17K745	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBP04 (VT)	22	FUSE - 4 OR CIRCUIT BREAKER	N/A
2	GD338 (BK-WH)	20	GROUND - TUNNEL # 2ND STUD	N/A
3	RRD12 (BN)	22	CTRL MOD. - ELECTROCHROMIC MIRROR	N/A

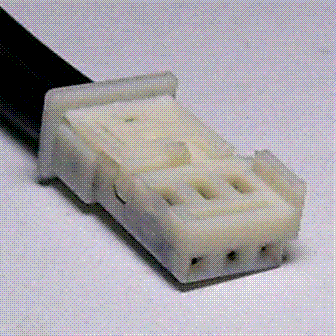

Available Pigtail Kits

Pigtail Kit Part Number WPT-1192

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-ACA

Gauge:

18

Pin material:

Tin (greased)

Cavities:

3

Vehicle Uses:

• Lamp - Courtesy - Door
• Lamp - Map
