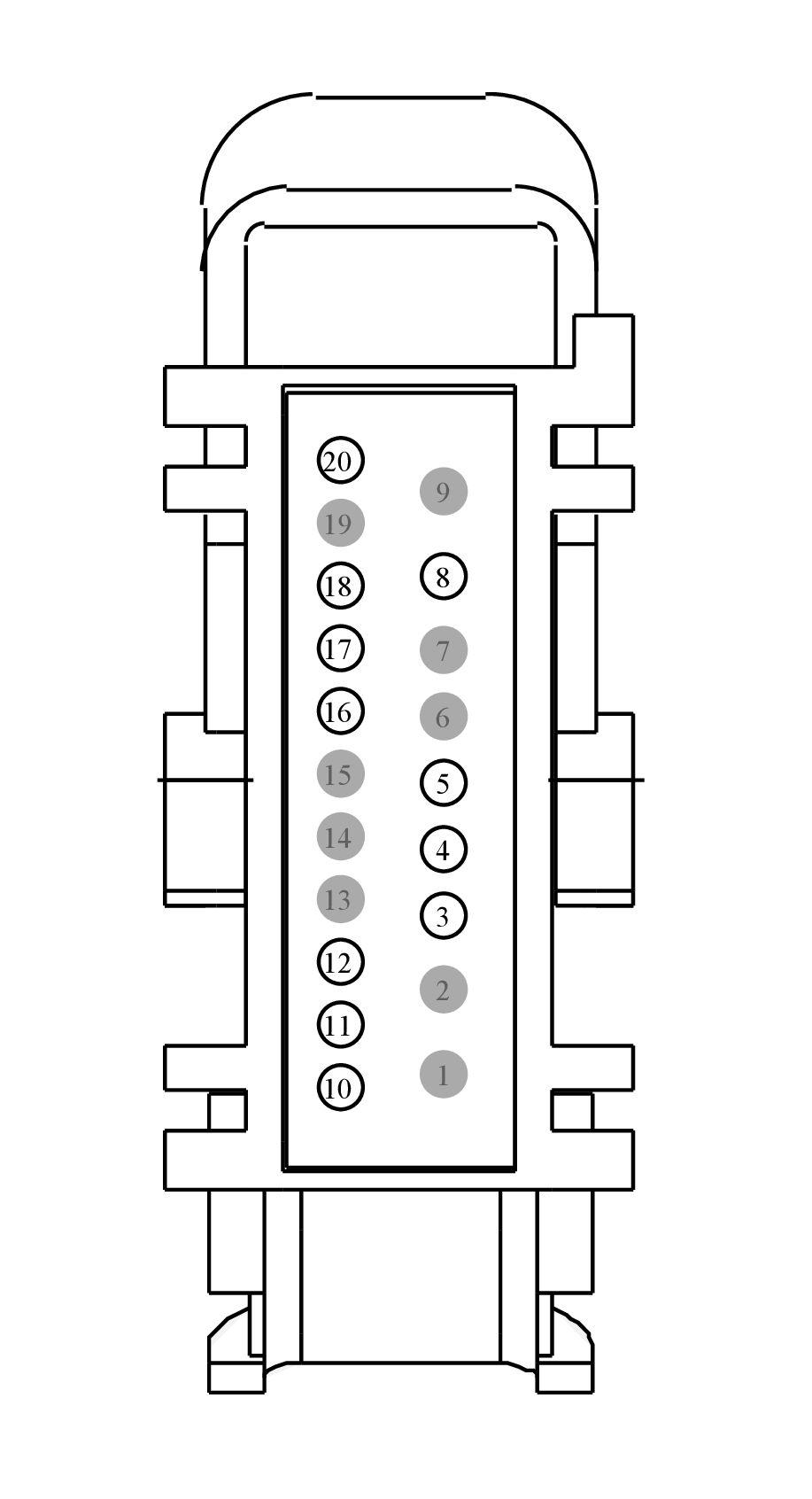

Connector End View (C2280F) - BODY CONTROL MODULE (BCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2280F	BODY CONTROL MODULE (BCM)	BK	14401	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	SBP24 (VT-RD)	20	FUSE - 24 OR CIRCUIT BREAKER	N/A
4	CBP02 (GN)	20	FUSE - 2 OR CIRCUIT BREAKER	N/A
5	SBP27 (BU-RD)	20	FUSE - 27 OR CIRCUIT BREAKER	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	SBP06 (BN-RD)	14	FUSE - 6 OR CIRCUIT BREAKER	N/A
9	*	*	Not Used	N/A
10	CBP18 (GY-OG)	22	FUSE - 18 OR CIRCUIT BREAKER	N/A
11	RRD11 (BN)	22	SWITCH - PASSENGER AIRBAG DEACTIVATION # RETURN	N/A
12	CBP17 (BN-GN)	20	FUSE - 17 OR CIRCUIT BREAKER	taxi	N/A
12	CLN27 (BN-GN)	20	SWITCH - VANITY MIRROR ILLUM. RIGHT	N/A
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	SBP08 (VT-RD)	22	FUSE - 8 OR CIRCUIT BREAKER	N/A
17	CBP04 (YE)	22	FUSE - 4 OR CIRCUIT BREAKER	N/A
18	SBP07 (WH-RD)	22	FUSE - 7 OR CIRCUIT BREAKER	N/A
19	*	*	Not Used	N/A
20	SBP26 (YE-RD)	20	FUSE - 26 OR CIRCUIT BREAKER	N/A
