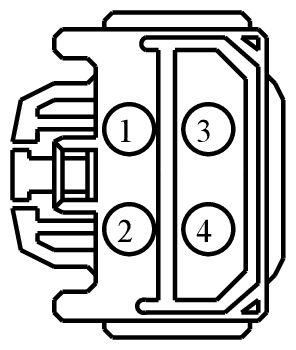

Connector End View (C293) - BLOWER MOTOR RESISTOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C293	BLOWER MOTOR RESISTOR	LT GY	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CH428 (GN-WH)	14	SWITCH - AC HEAD PRESSURE (ACPSW)	N/A
2	CH427 (BN)	16	SWITCH - AC HEAD PRESSURE (ACPSW)	N/A
3	CH429 (GY-BN)	12	SWITCH - AC HEAD PRESSURE (ACPSW)	N/A
4	CH430 (VT-OG)	10	SWITCH - AC HEAD PRESSURE (ACPSW)	N/A

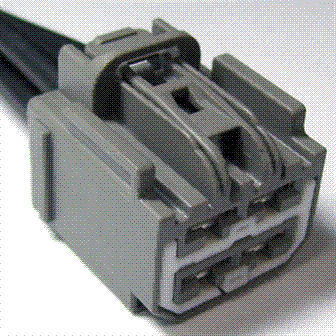

Available Pigtail Kits

Pigtail Kit Part Number WPT-1177

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-BHA

Gauge:

10

Pin material:

Tin

Cavities:

4

Vehicle Uses:

• Mating Connector WPT-1408
• Resistor - Blower Motor (Front)
• Switch - Heater / A/C Blower (Front)
