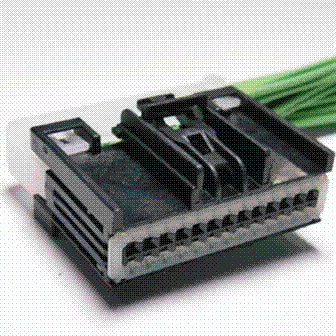

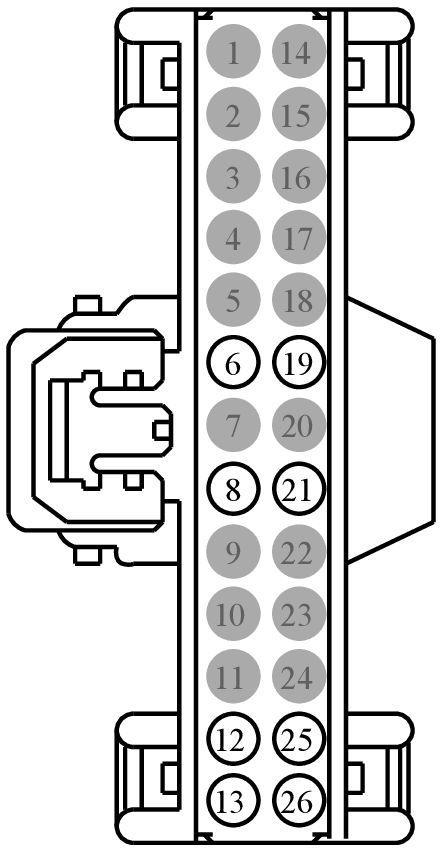

Connector End View (C240B) - AUDIO FRONT CONTROL MODULE (ACM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C240B	AUDIO FRONT CONTROL MODULE (ACM)	BK	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	VME58 (YE-VT)	22	SWITCH - REDUNDANT AUDIO	N/A
7	*	*	Not Used	N/A
8	VME80 (VT-GN)	22	SWITCH - REDUNDANT AUDIO	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	VME17 (GN)	22	TACHOGRAPH - PULSE (PULSE PER METRE)	SYNC GEN 1	N/A
12	VME52 (BU)	22	SWITCH - REDUNDANT AUDIO	N/A
13	VME18 (VT)	22	TACHOGRAPH - PULSE (PULSE PER METRE)	SYNC GEN 1	N/A
13	VME53 (VT-GN)	22	SWITCH - REDUNDANT AUDIO	N/A
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A
19	VME59 (YE-OG)	22	SWITCH - REDUNDANT AUDIO	N/A
20	*	*	Not Used	N/A
21	RME80 (BU-GY)	22	SWITCH - CONTACT PLATE SLIDING DOOR RIGHT # SPEAKER SLIDING DOOR	N/A
22	*	*	Not Used	N/A
23	*	*	Not Used	N/A
24	*	*	Not Used	N/A
25	RME17 (GY)	22	CTRL MOD. - AUDIO # RADIO LEFT	SYNC GEN 1	N/A
25	RME52 (GY-OG)	22	SWITCH - CONTACT PLATE SLIDING DOOR RIGHT # SPEAKER SLIDING DOOR	N/A
26	RME18 (YE)	22	CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR	SYNC GEN 1	N/A
26	RME53 (BN-WH)	22	SWITCH - CONTACT PLATE SLIDING DOOR RIGHT # SPEAKER SLIDING DOOR	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1581

Courtesy of FORD MOTOR COMPANY

Service Part Number:

KU2Z-14S411-AA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:
