Oil Pressure Control Solenoid (1.0L)

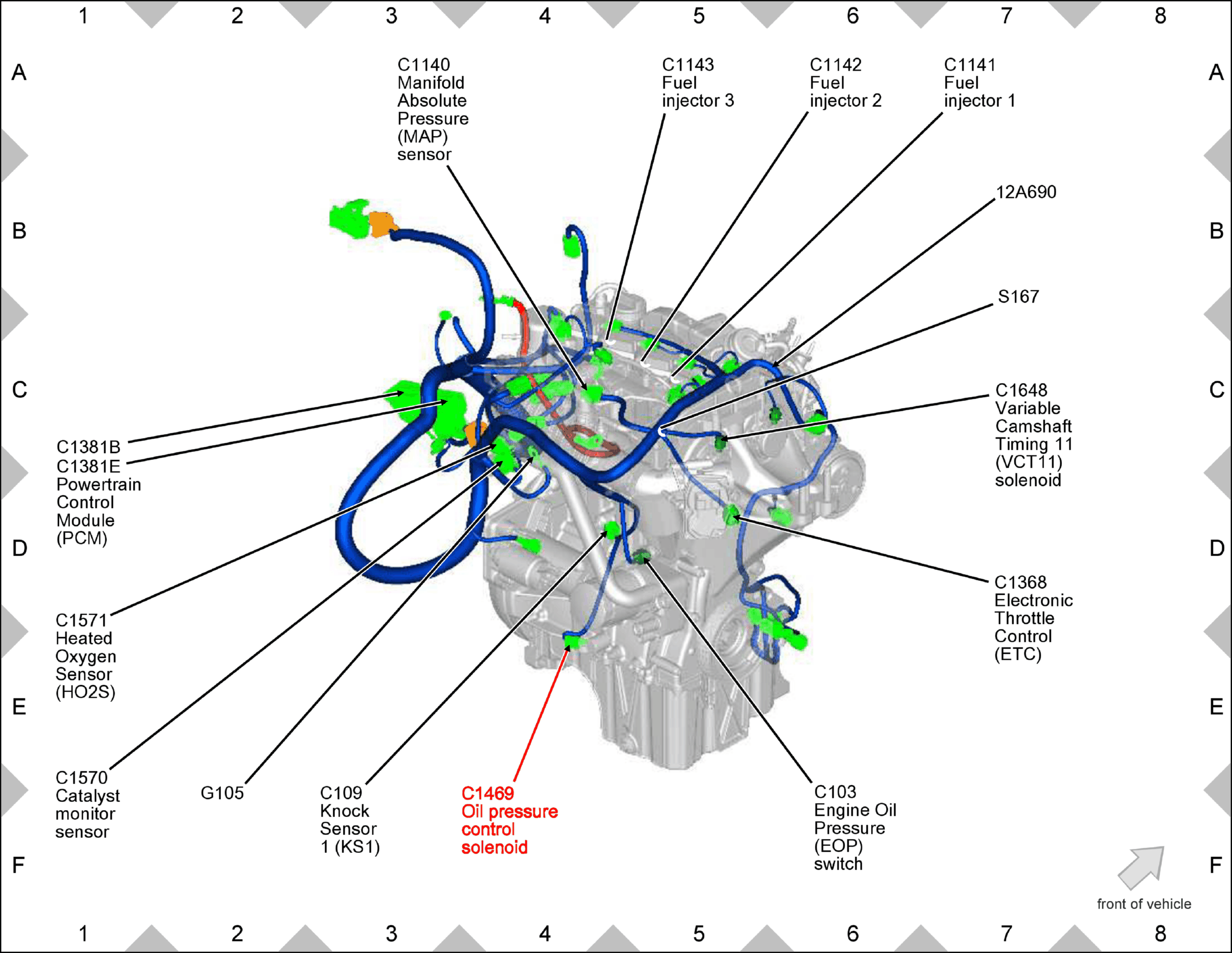

Fig 1: Oil Pressure Control Solenoid (1.0L) Components Location

GFDW64324

Courtesy of FORD MOTOR COMPANY
