Luggage Compartment Power Outlet Socket

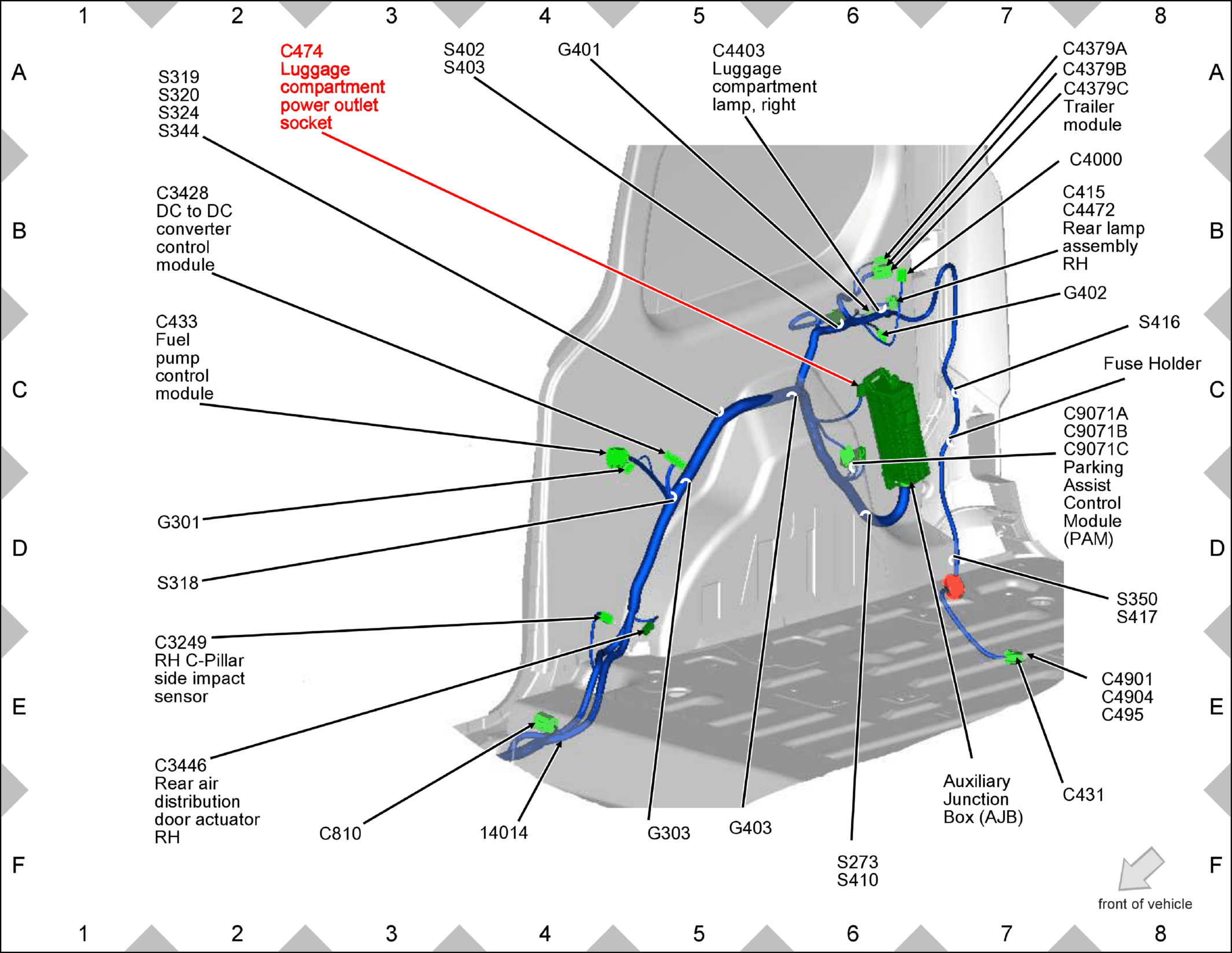

Fig 1: Luggage Compartment Power Outlet Socket Components Location

GFDW64308

Courtesy of FORD MOTOR COMPANY
