Intake Air Temperature (IAT) Sensor (1.0L)

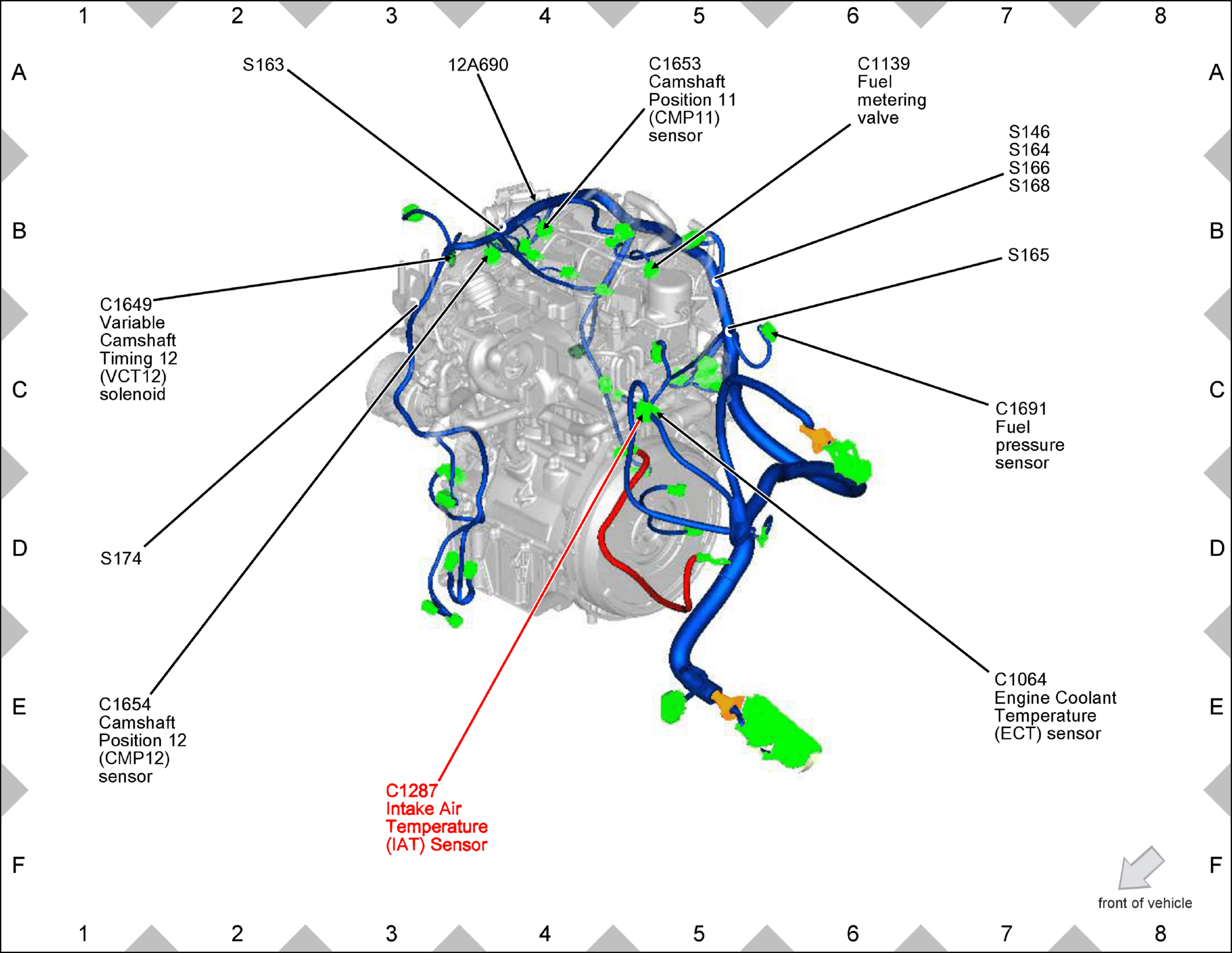

Fig 1: Intake Air Temperature (IAT) Sensor (1.0L) Components Location

GFDW64281

Courtesy of FORD MOTOR COMPANY
