Fuel Volume Control Valve (1.5L DV5)

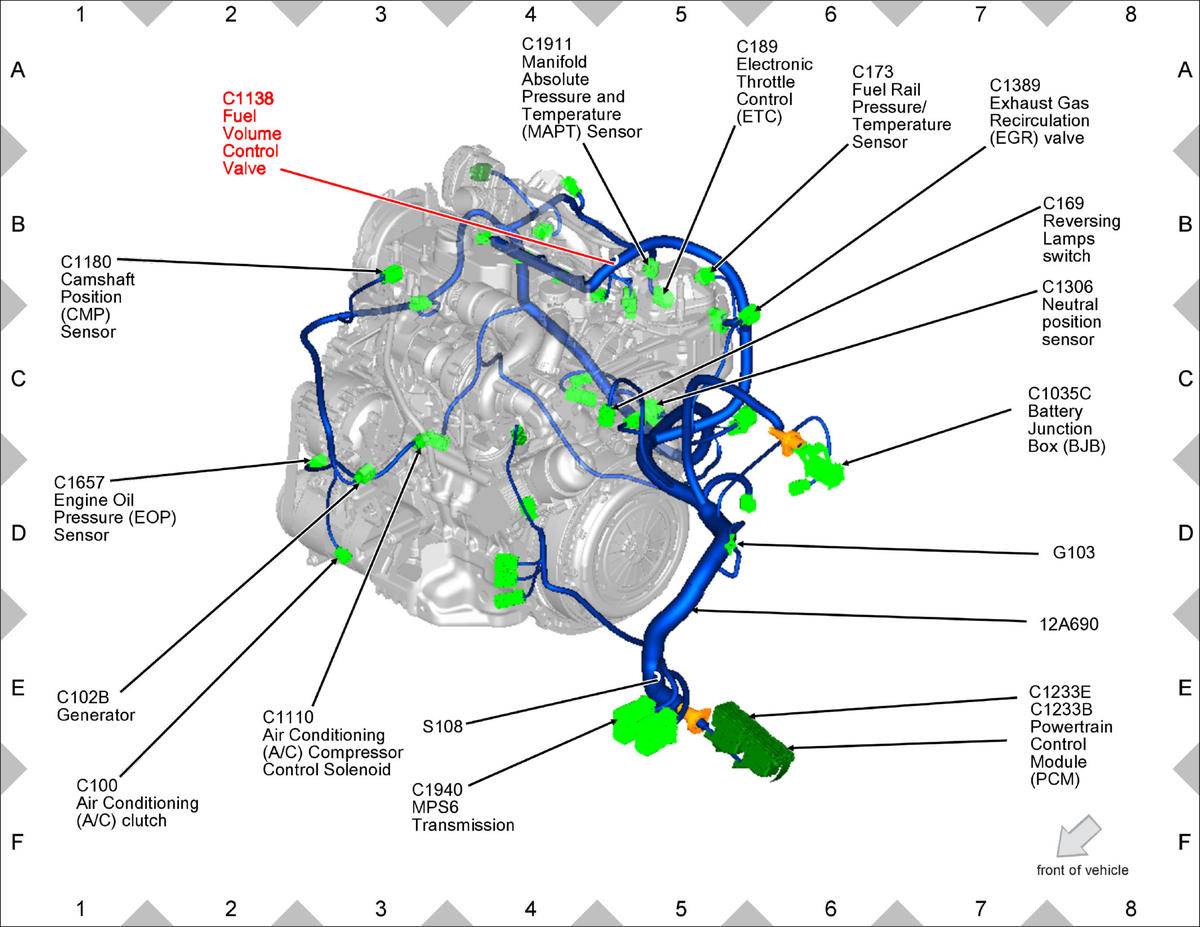

Fig 1: Fuel Volume Control Valve (1.5L DV5) Components Location

GFDW86047

Courtesy of FORD MOTOR COMPANY
