Fuel Rail Pressure/Temperature Sensor (1.5L DV5)

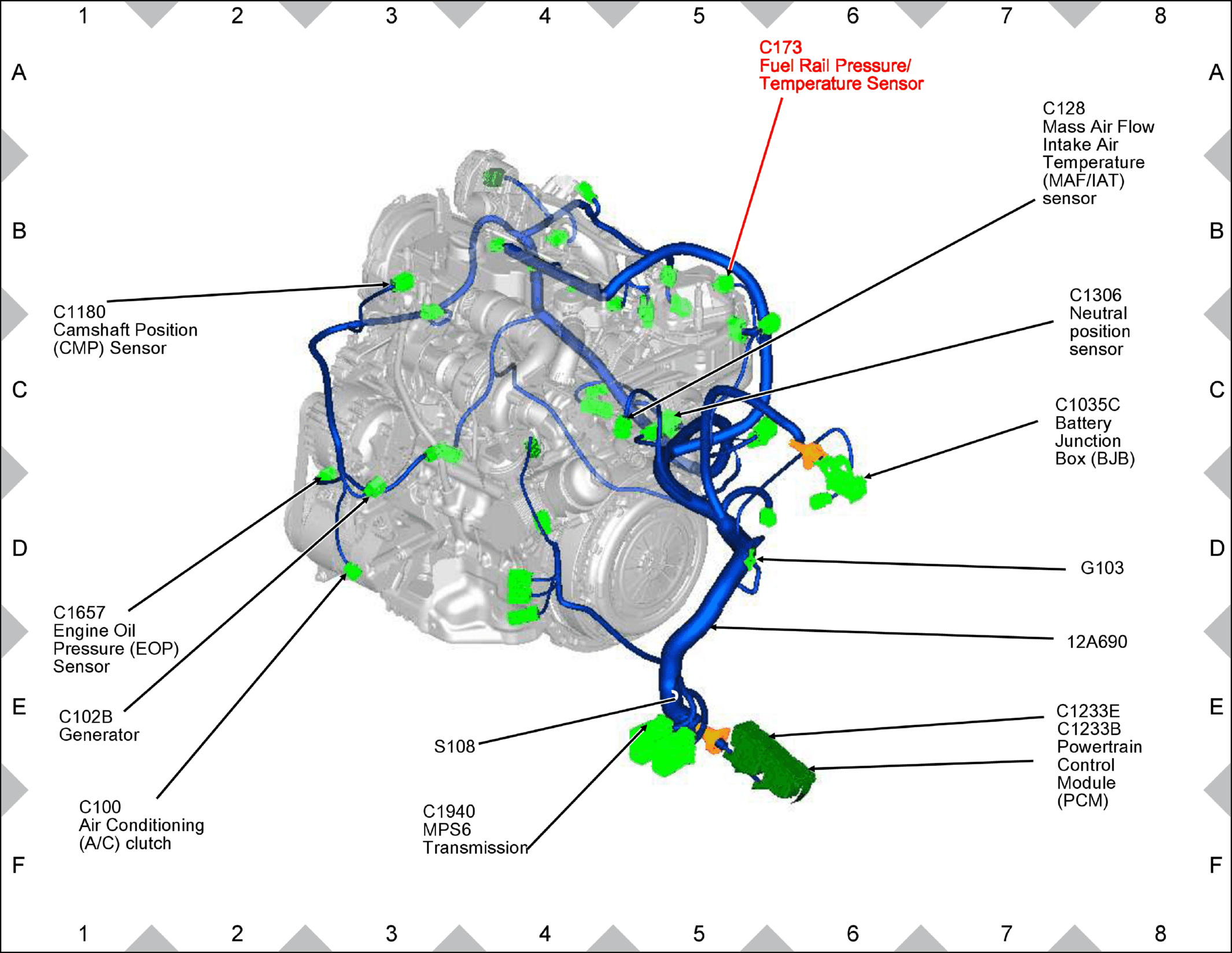

Fig 1: Fuel Rail Pressure/Temperature Sensor (1.5L DV5) Components Location

GFDW64235

Courtesy of FORD MOTOR COMPANY
