Defrost Mode Door Actuator
Defrost Mode Door Actuator

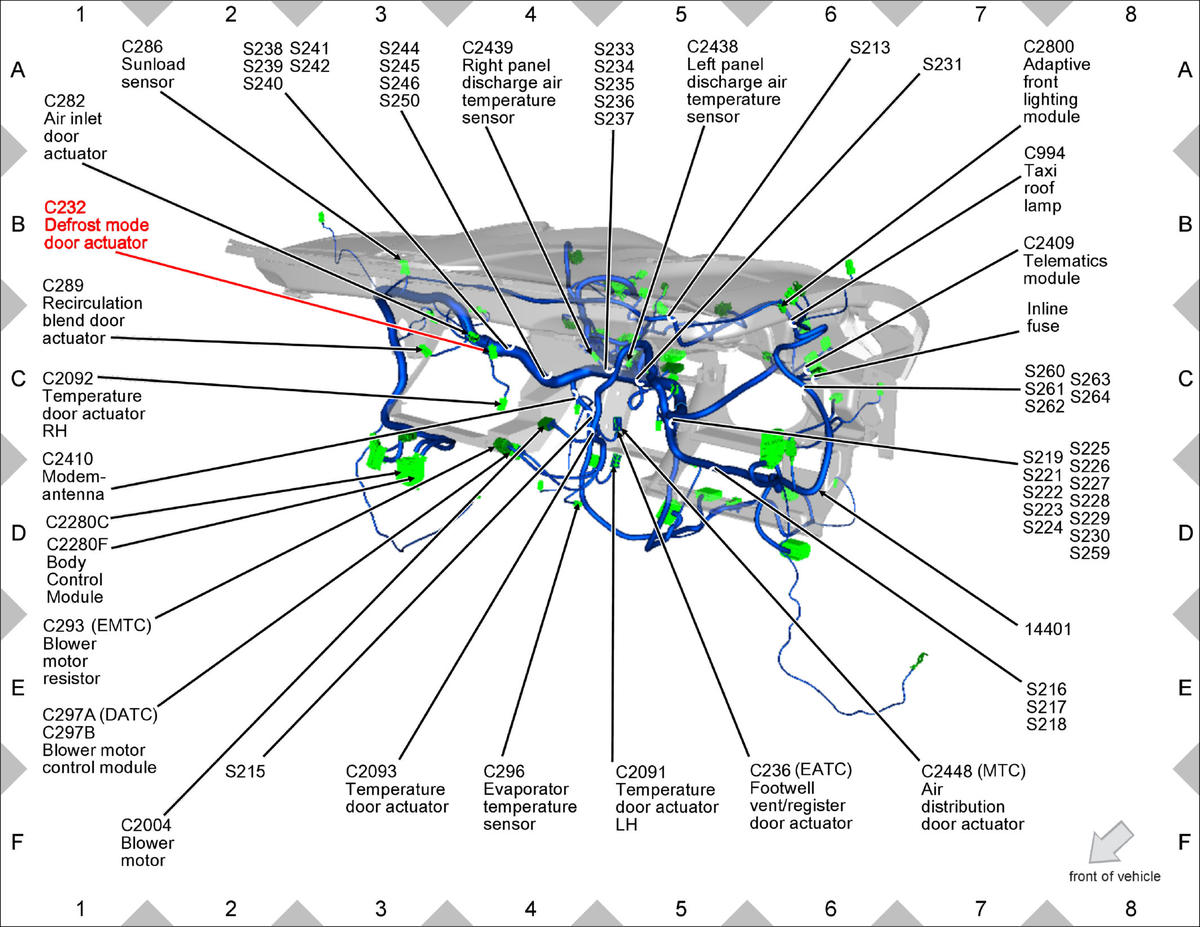

Fig 1: Defrost Mode Door Actuator Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
