Air Conditioning (A/C) Compressor Control Solenoid (1.0L)

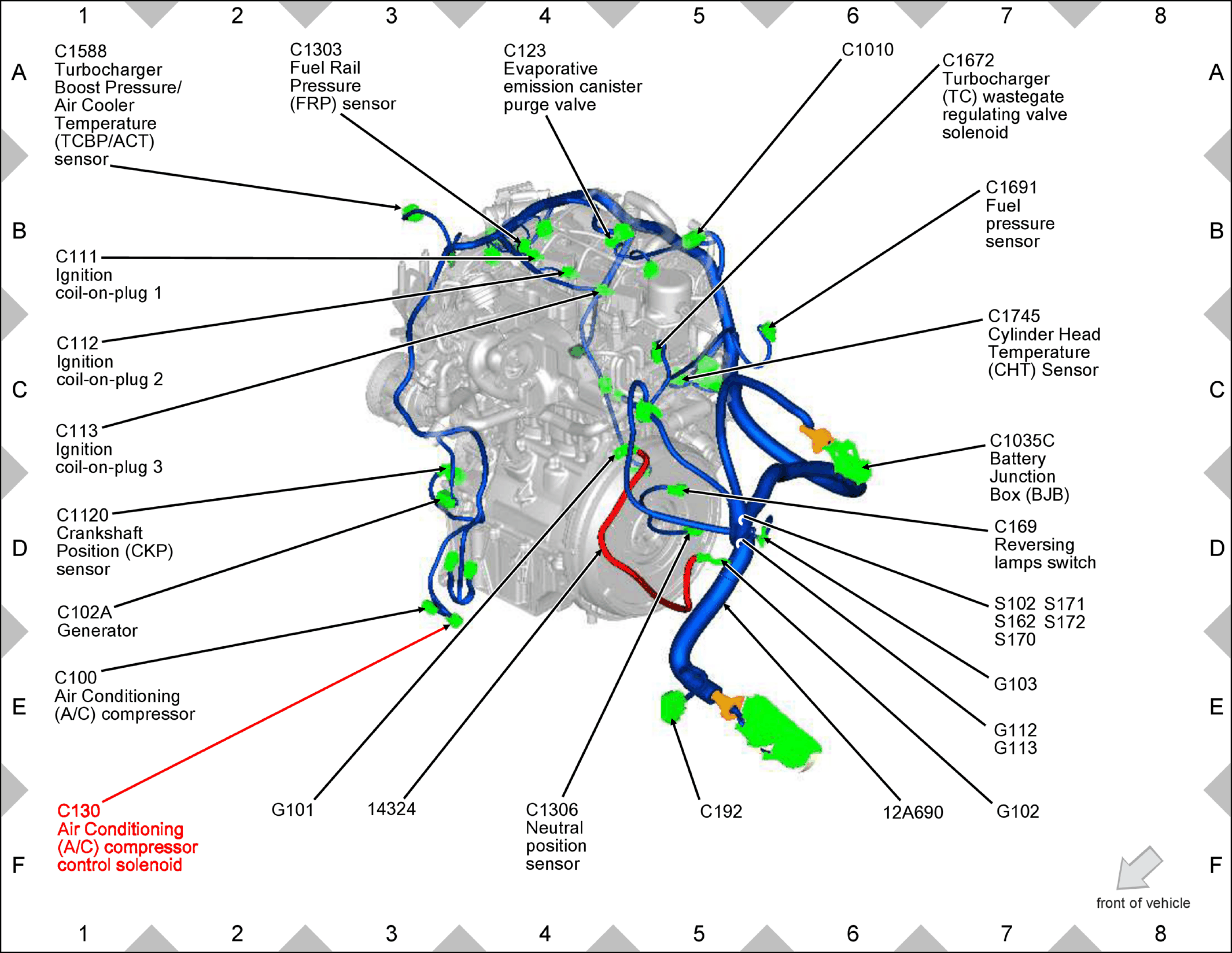

Fig 1: Air Conditioning (A/C) Compressor Control Solenoid (1.0L) Components Location

GFDW64085

Courtesy of FORD MOTOR COMPANY
