Transmission Fluid Cooler Tubes - 2.5L Duratec (125kW/170PS), Liquefied Petroleum Gas (LPG): Removal

Remove the battery tray. Refer to: Battery Tray - 2.5L Duratec (125kW/170PS) .

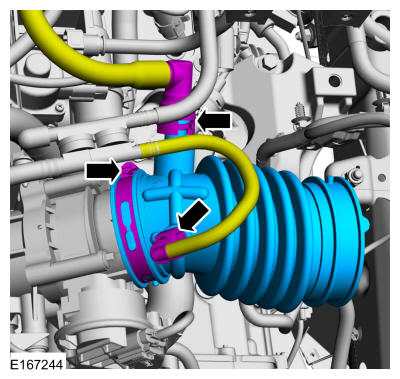

- Disconnect the quick release couplings from the air cleaner outlet pipe. Refer to: Quick Release Coupling .
- Loosen the clamp and remove the air cleaner outlet pipe.
Courtesy of FORD MOTOR COMPANY
NOTE: Use suitable paper to absorb any escaping fluid.

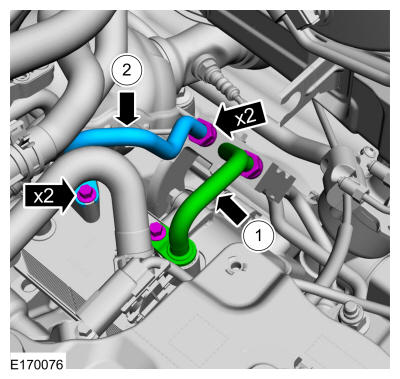

1. Remove the transmission mounted transmission fluid cooler outlet tube bolt. Loosen the nut and remove the transmission mounted transmission fluid cooler outlet tube.
2. Remove the transmission mounted transmission fluid cooler inlet tube bolt. Loosen the nut and remove the transmission mounted transmission fluid cooler inlet tube.
Courtesy of FORD MOTOR COMPANY
NOTE: Use suitable paper to absorb any escaping fluid.

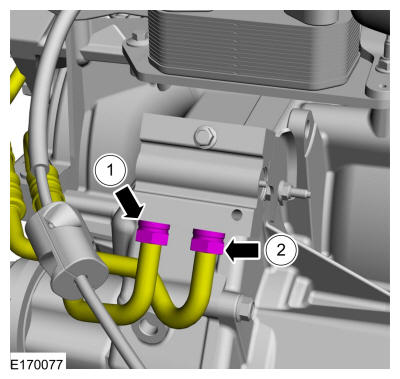

1. Loosen the nut and remove the transmission mounted transmission fluid cooler outlet tube.
2. Loosen the nut and remove the transmission mounted transmission fluid cooler inlet tube.
Courtesy of FORD MOTOR COMPANY
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
If equipped.
1. Remove the retainers and the shield reinforcement.
2. Remove the retainers and the underbody shield.
Courtesy of FORD MOTOR COMPANY

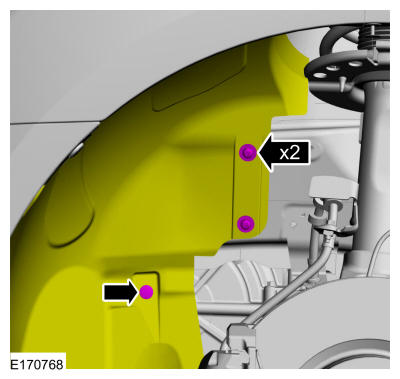

Remove the retainers and position aside the LH fender splash shield.

Courtesy of FORD MOTOR COMPANY

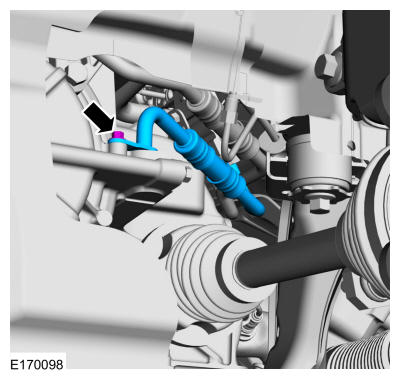

Remove the bolt and the transmission fluid cooler inlet tube.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that no component falls off during removal.

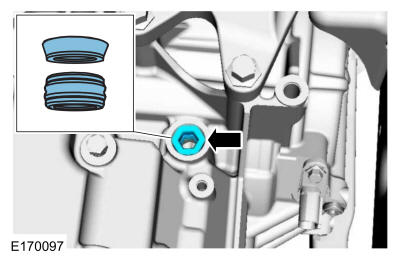

Remove the transmission fluid cooler inlet tube band seal and backing ring.

Courtesy of FORD MOTOR COMPANY
Lower the vehicle. Refer to: Jacking and Lifting - Overview .

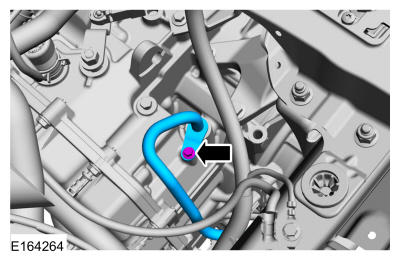

Remove the bolt and the transmission fluid cooler outlet tube.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that no component falls off during removal.

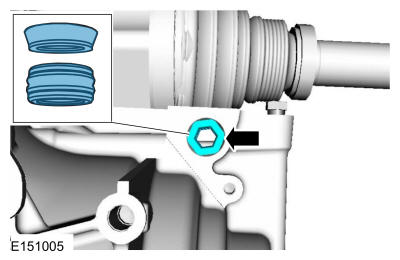

Remove the transmission fluid cooler outlet tube band seal and backing ring.
