Cooler Bypass Valve - 2.5L Duratec (125kW/170PS), Liquefied Petroleum Gas (LPG): Removal

Remove the battery tray. Refer to: Battery Tray - 2.5L Duratec (125kW/170PS) .
- Disconnect the quick release couplings from the air cleaner outlet pipe. Refer to: Quick Release Coupling .
- Loosen the clamp and remove the air cleaner outlet pipe.
Courtesy of FORD MOTOR COMPANY
NOTE: Use suitable paper to absorb any escaping fluid.
1. Remove the transmission mounted transmission fluid cooler outlet tube bolt. Loosen the nut and remove the transmission mounted transmission fluid cooler outlet tube.
2. Remove the transmission mounted transmission fluid cooler inlet tube bolt. Loosen the nut and remove the transmission mounted transmission fluid cooler inlet tube.
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that no component falls off during removal.

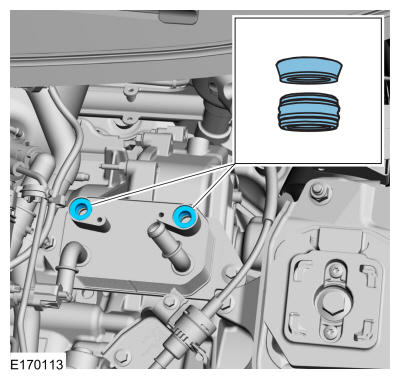

Remove the band seals and backing rings from the transmission fluid cooler.

Courtesy of FORD MOTOR COMPANY
1. Loosen the nut and remove the transmission mounted transmission fluid cooler outlet tube.
2. Loosen the nut and remove the transmission mounted transmission fluid cooler inlet tube.
Courtesy of FORD MOTOR COMPANY

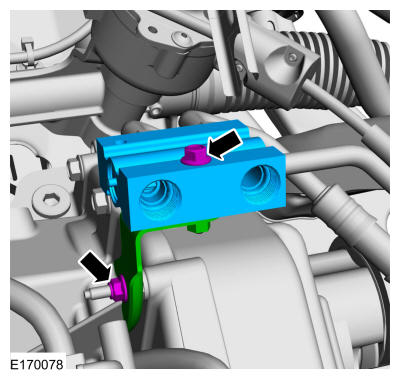

- Remove the bolt and the transmission fluid thermal bypass valve.
- Remove the bolt and the transmission fluid thermal bypass valve mounting bracket.
