Airbag and Seatbelt Pretensioner Supplemental Restraint System (SRS) - Component Location

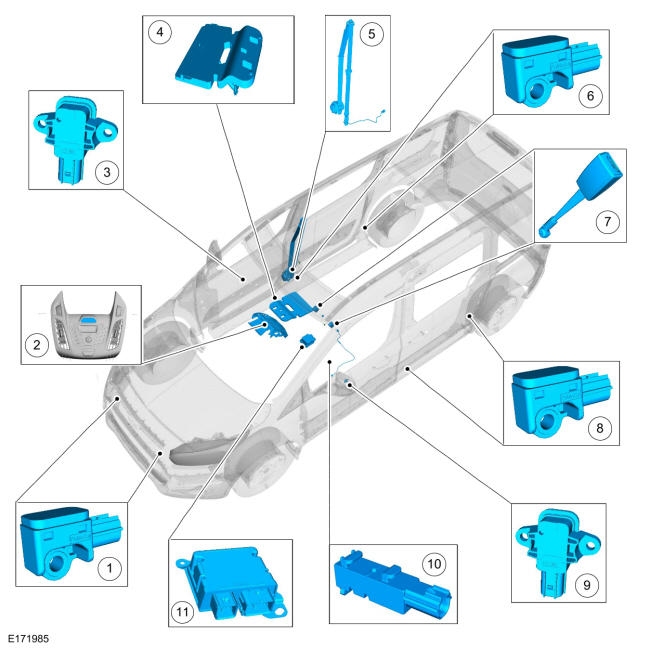

Courtesy of FORD MOTOR COMPANY

Item	Description
1	Front impact severity sensor
2	FCIM with passenger airbag deactivation indicator
3	Side impact sensor - front door
4	OCS sensor
5	Safety belt retractor with Belt Tension Sensor (BTS)
6	B-pillar side impact sensor (driver and passenger side, vehicles without second row seat) and C-pillar side impact sensor (driver and passenger side, vehicles with second row seats respectively second and third row seats)
7	Safety belt buckle with switch
8	B-pillar side impact sensor (driver and passenger side, vehicles without second row seat) and C-pillar side impact sensor (driver and passenger side, vehicles with second row seats respectively second and third row seats)
9	Side impact sensor - front door
10	Front seat position sensor - driver seat (passenger side if equipped)
11	RCM

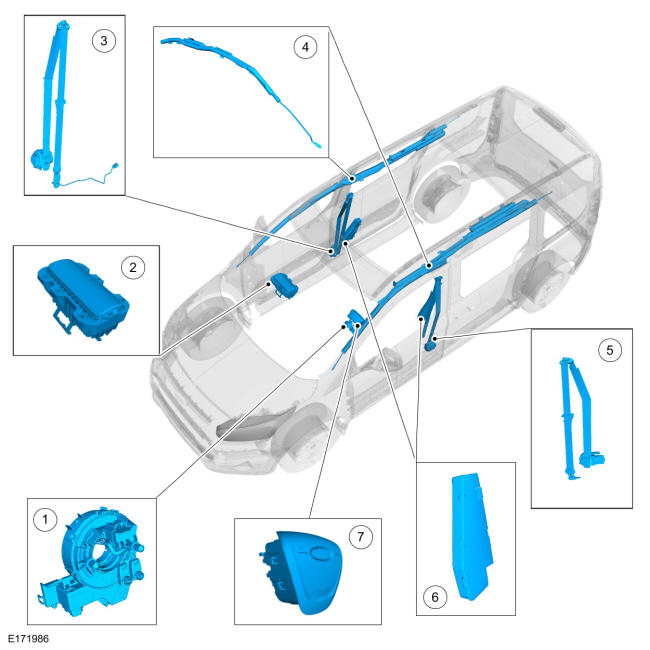

Courtesy of FORD MOTOR COMPANY

Item	Description
1	Clockspring
2	Front passenger airbag (if equipped)
3	Safety belt retractor and pretensioner with adaptive load limiter (if equipped, passenger side only)
4	Side curtain airbag (if equipped)
5	Safety belt retractor and pretensioner
6	Side airbag driver side (passenger side if equipped)
7	Driver airbag
