Fuel System Pressure Release

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Pressure release

1. WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
   NOTE: Once this procedure is completed, connect a Diagnostic Scan Tool and clear any DTC's that are present.

   Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .

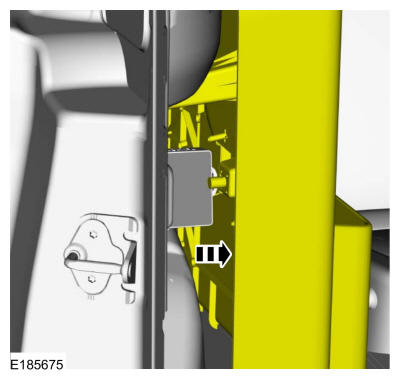

2. Position aside RH load space trim panel.

   Courtesy of FORD MOTOR COMPANY

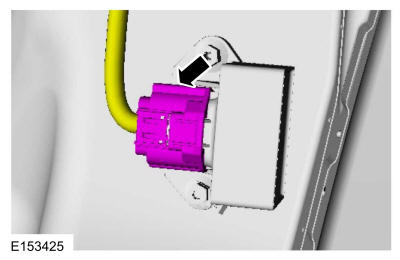

3. Disconnect the FPDM electrical connector.

   Courtesy of FORD MOTOR COMPANY

4. Start and run the engine at idle.
5. Wait until the engine stalls.
6. Crank the engine for approximately 5 seconds to release the fuel pressure.
7. Turn the ignition switch to the off position.
8. WARNING: Fuel may still be under pressure in the fuel lines.

   Always wrap the fuel line connection with a towel before disconnecting it.

9. When the fuel system service is complete, reconnect the FPDM electrical connector.

   Courtesy of FORD MOTOR COMPANY

10. Reposition RH load space trim panel.

    Courtesy of FORD MOTOR COMPANY

11. Cycle the ignition key and wait 3 seconds to pressurize the fuel system. Check for leaks before starting the engine.
