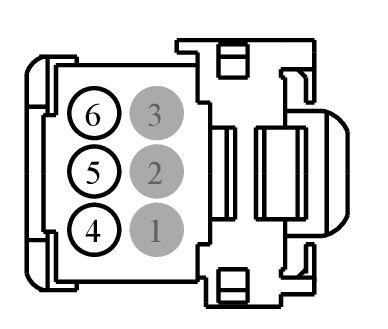

Connector End View (C2099) - PASSENGER AIRBAG DEACTIVATION (PAD) SWITCH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2099	PASSENGER AIRBAG DEACTIVATION (PAD) SWITCH	BK	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	CR225 (YE)	22	SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) ROW 3 PASSENGER SIDE OUTBOARD	N/A
5	RR129 (YE-GY)	22	CTRL MOD. - SENSOR IMPACT FRONT 1ST OR LEFT	N/A
6	CR224 (GN)	22	SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) ROW 3 PASSENGER SIDE OUTBOARD	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1207

Courtesy of FORD MOTOR COMPANY

Service Part Number:

5U2Z-14S411-ABC

Gauge:

18

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Switch - Courtesy Lamp - Liftgate
• Switch - Deck Lid / Hatch Release
• Switch - Deck Lid / Lift Gate Ajar
• Switch - Heater A/C Temp Control
• Switch - Message Center
• Switch - Power Liftgate
