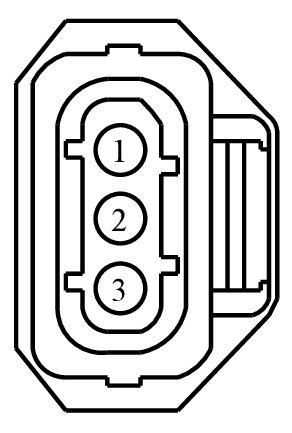

Connector End View (C106) - FUEL RAIL PRESSURE (FRP) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C106	FUEL RAIL PRESSURE (FRP) SENSOR	BK	12A690/12C508	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RE238 (GN-VT)	20	SENSOR - FUEL PRESSURE SENSOR (SIGRTN)	N/A
2	VE727 (BU-BN)	20	SENSOR - FUEL LOW PRESSURE (FLP)	N/A
3	LE238 (GY)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE (VREF)	N/A

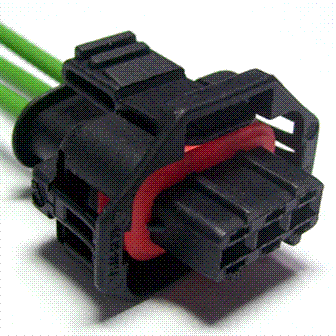

Available Pigtail Kits

Pigtail Kit Part Number WPT-1099

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-BBA

Gauge:

14

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Fuel Injector
• Pump - Fuel Injection
• Sensor - Manifold Absolute Pressure (MAP)
• Solenoid - Fuel Volume Regulator Control
