Liquefied Petroleum Gas (LPG) Assembly (LPG)

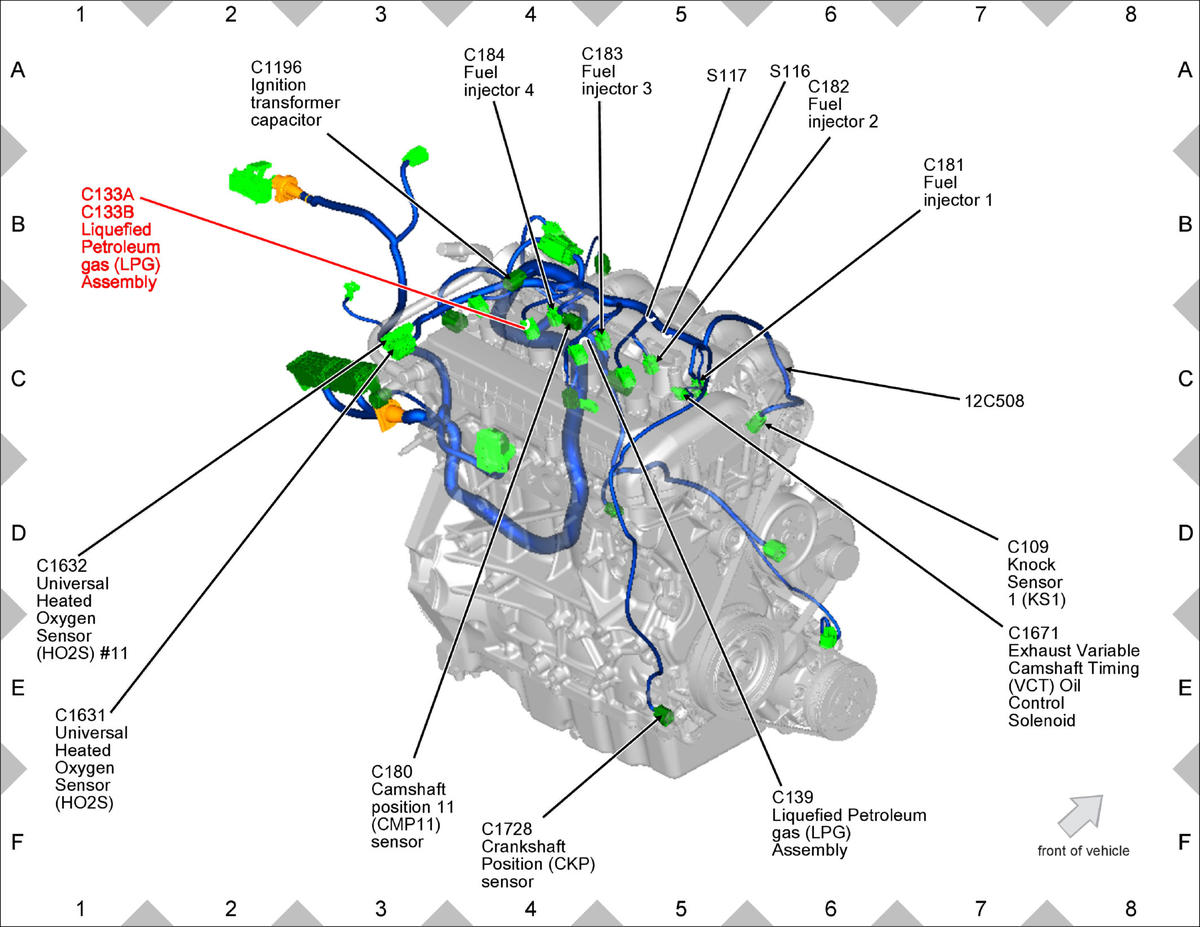

Fig 1: Liquefied Petroleum Gas (LPG) Assembly (LPG) Components Location

GFDW86093

Courtesy of FORD MOTOR COMPANY
