Liquefied Petroleum Gas (LPG) Assembly (2.5L)

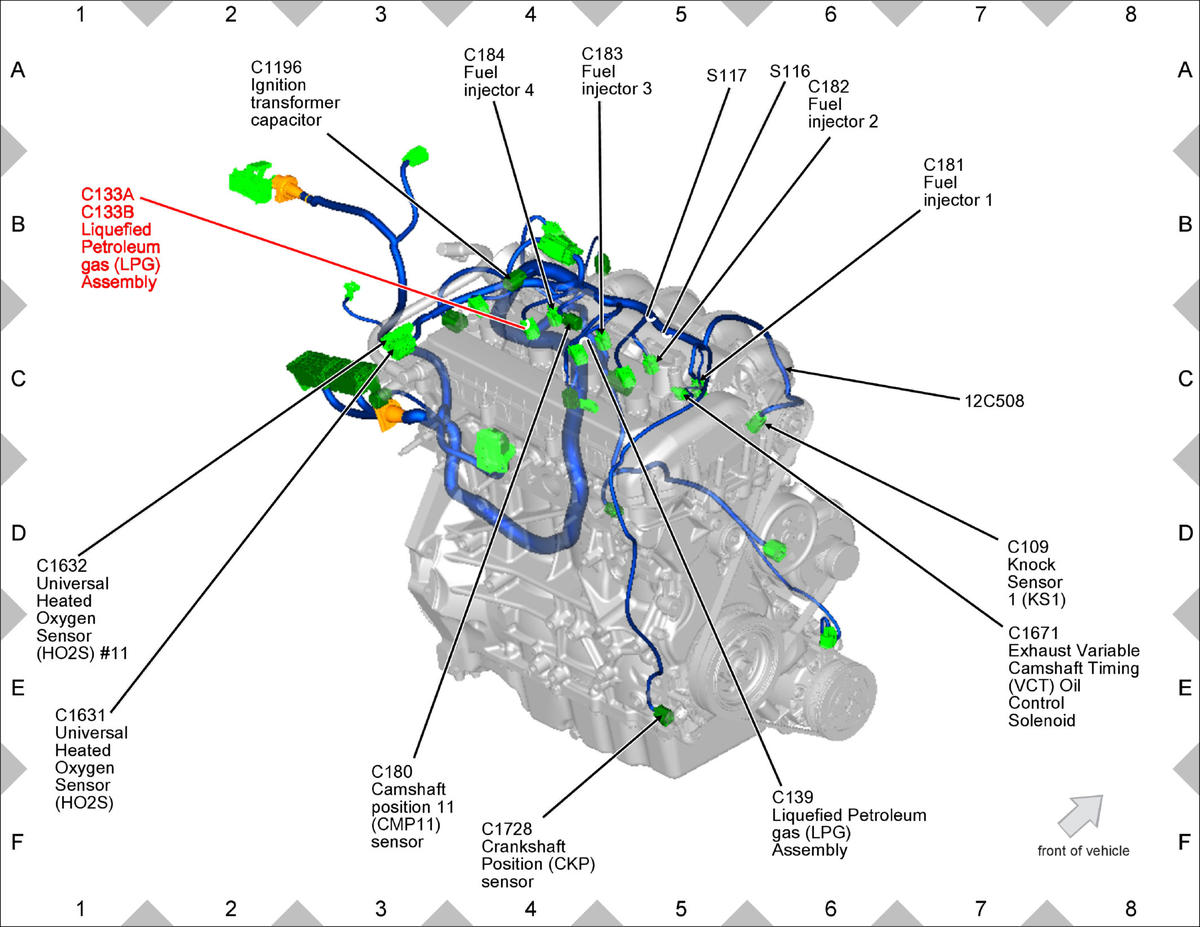

Fig 1: Liquefied Petroleum Gas (LPG) Assembly (2.5L) Components Location

GFDW86092

Courtesy of FORD MOTOR COMPANY
