Exhaust Variable Camshaft Timing (VCT) Oil Control Solenoid (2.5L)

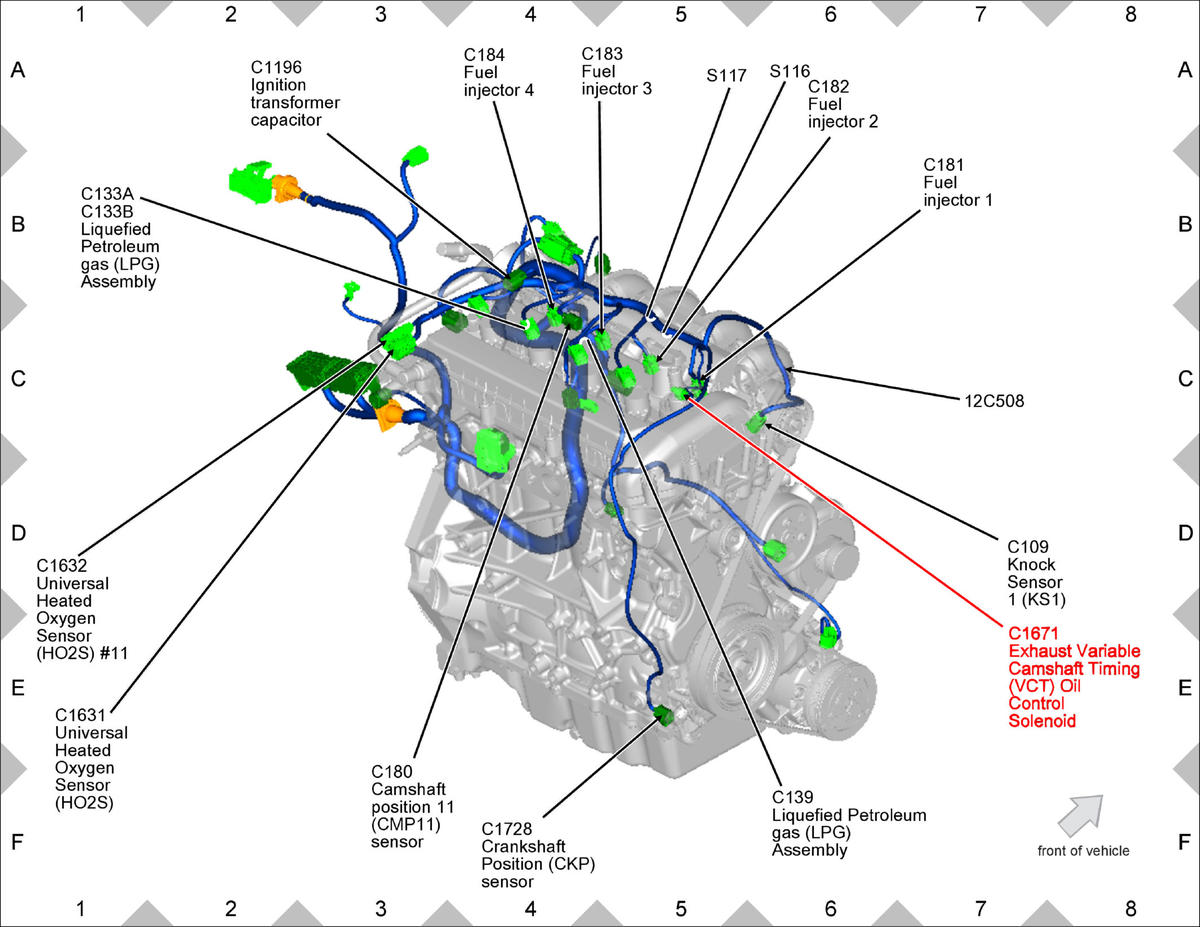

Fig 1: Exhaust Variable Camshaft Timing (VCT) Oil Control Solenoid (2.5L) Components Location

GFDW86002

Courtesy of FORD MOTOR COMPANY
