Exhaust Variable Camshaft Timing (VCT) Oil Control Solenoid (1.6L GTDI)

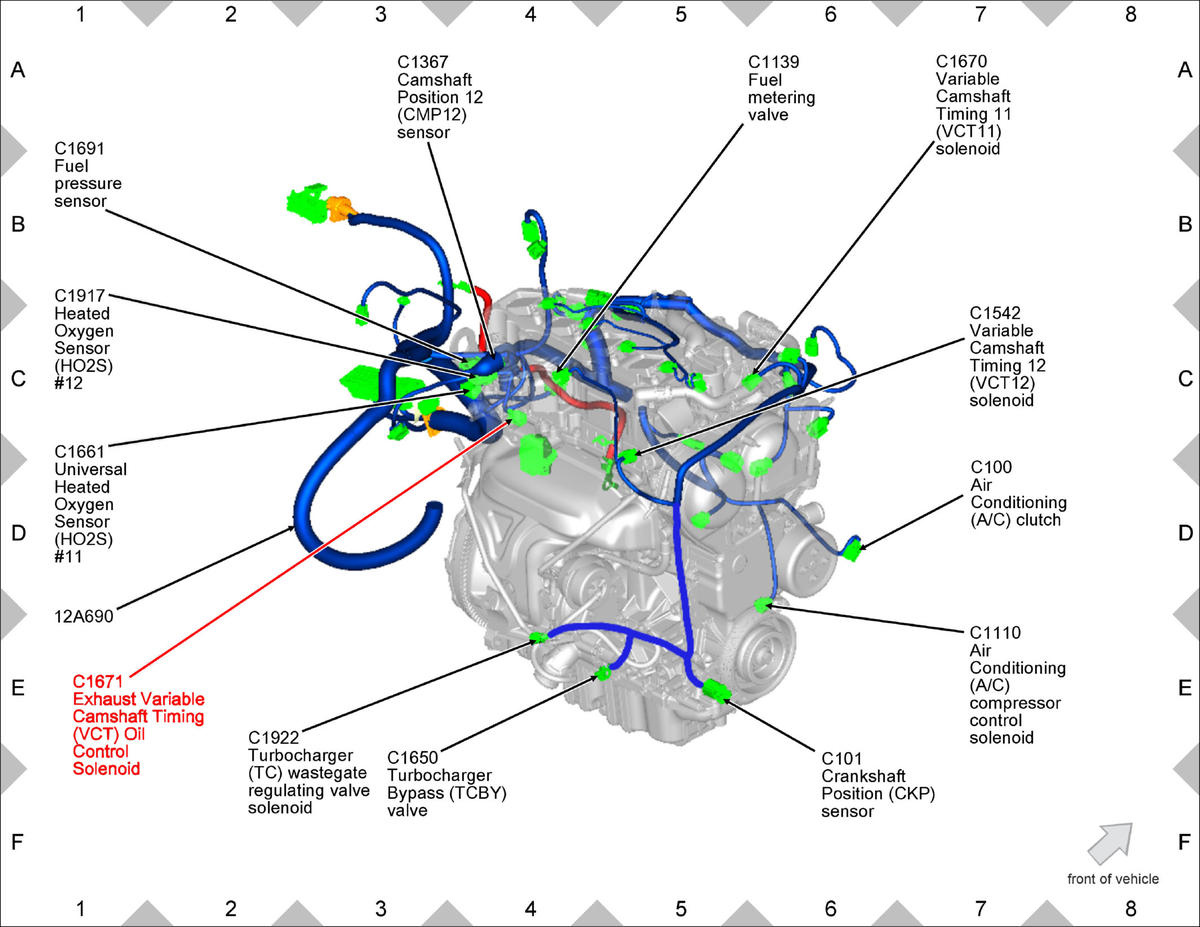

Fig 1: Exhaust Variable Camshaft Timing (VCT) Oil Control Solenoid (1.6L GTDI) Components Location

GFDW86001

Courtesy of FORD MOTOR COMPANY
