Cooling Fan Motor and Shroud: Removal

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
If equipped, remove the retainers and the front lip seal.

Courtesy of FORD MOTOR COMPANY
If equipped, remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY
Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY
Remove the front bumper cover. Refer to: Front Bumper Cover .
Remove the radiator side air deflectors pin-type retainers.

Courtesy of FORD MOTOR COMPANY
Remove the radiator side air deflectors.
1. Remove the radiator side air deflector retainers.
2. Release the tab and remove the radiator side air deflectors.
Courtesy of FORD MOTOR COMPANY
Loosely install the cable ties at both sides. Use the General Equipment: Cable Ties

Courtesy of FORD MOTOR COMPANY
Remove the front lower crossmember.
1. Remove the grommets and the front lower crossmember bracket bolts.
  Torque: 18 lb.ft (25 Nm)
2. Remove the bolts and the front lower crossmember.
  Torque: 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY
Disconnect the cooling fan motor electrical connector and detach the wiring retainer.

Courtesy of FORD MOTOR COMPANY

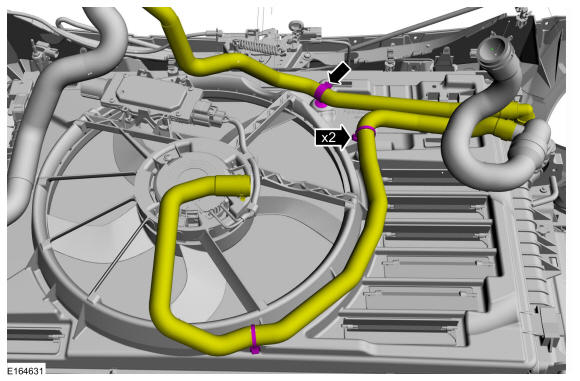

Detach the retainers and position aside the hoses.

Courtesy of FORD MOTOR COMPANY

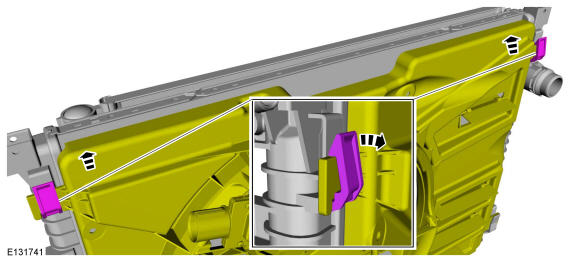

Release the cooling fan motor and shroud upper tabs.

Courtesy of FORD MOTOR COMPANY

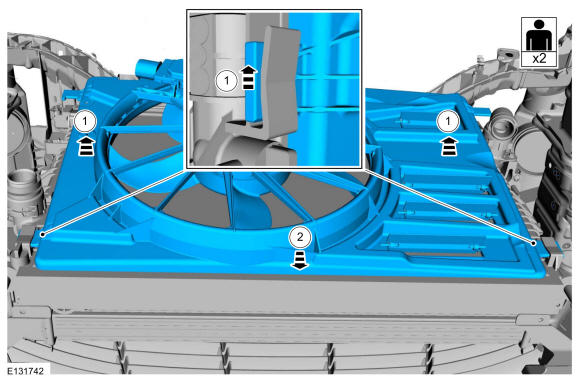

Lift up and remove the cooling fan motor and shroud.

Courtesy of FORD MOTOR COMPANY
