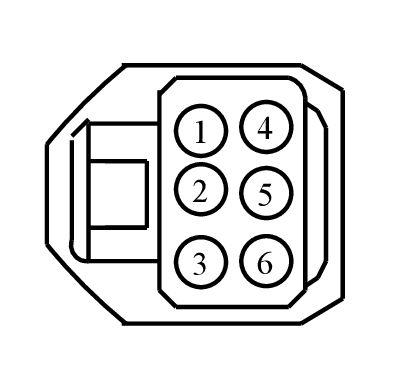

Connector End View (C608) - PASSENGER DOOR WINDOW REGULATOR MOTOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C608	PASSENGER DOOR WINDOW REGULATOR MOTOR	BK	14K138	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPW41 (BK)	14	SWITCH - REAR WINDOW FLIP # RIGHT OPEN	N/A
2	VPW45 (BK)	22	CTRL MOD. - WINDOW MOTOR FRONT PASSENGER # SENSOR 2	N/A
3	LPW42 (BK)	22	CTRL MOD. - WINDOW MOTOR FRONT PASSENGER # SENSORS	N/A
4	CPW40 (BK)	14	SWITCH - REAR WINDOW FLIP # RIGHT OPEN	N/A
5	VPW44 (BK)	22	CTRL MOD. - WINDOW MOTOR FRONT PASSENGER # SENSOR 1	N/A
6	RPW43 (BK)	22	CTRL MOD. - WINDOW MOTOR FRONT PASSENGER # SENSORS	N/A

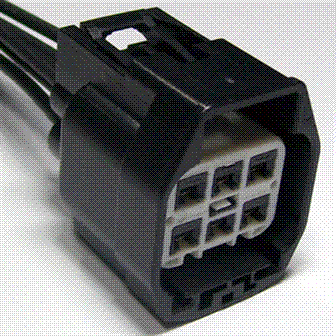

Available Pigtail Kits

Pigtail Kit Part Number WPT-1344

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-AEA

Gauge:

16

Pin material:

Tin

Cavities:

6

Vehicle Uses:

• Motor - Power Window - LH - Front
• Motor - Power Window - LH - Rear
• Motor - Power Window - RH - Front
• Motor - Power Window - RH - Rear
