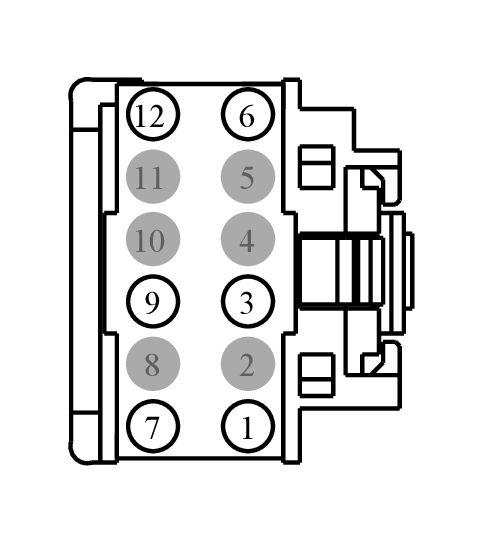

Connector End View (C2805) - REAR WINDOW DEFROST/HEATED WINDSHIELD SWITCH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2805	REAR WINDOW DEFROST/HEATED WINDSHIELD SWITCH	BK	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CRD09 (BU-GY)	22	SWITCH - HEATER REAR WINDOW	N/A
2	*	*	Not Used	N/A
3	CRD03 (BU-GN)	26	INDICATOR - HEATER FRONT WINDOW	N/A
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	CLN17 (BN)	22	SWITCH - IP/SWITCH ILLUMINATION	N/A
7	CRD08 (GN-OG)	22	SWITCH - HEATER FRONT WINDOW	N/A
8	*	*	Not Used	N/A
9	CRD04 (BN-GN)	26	INDICATOR - HEATER REAR WINDOW	N/A
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	GD133 (BK)	22	GROUND - PILLAR A LEFT	N/A

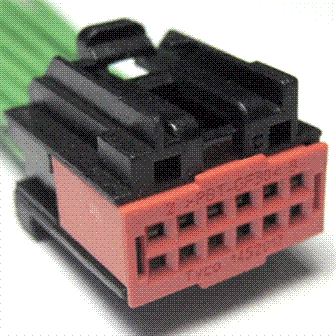

Available Pigtail Kits

Pigtail Kit Part Number WPT-1166

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-UA

Gauge:

18

Pin material:

Silver

Cavities:

12

Vehicle Uses:

• Clockspring
