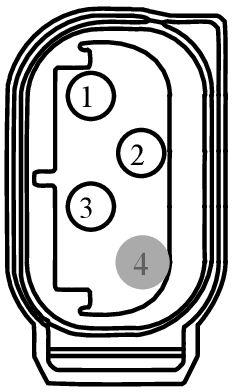

Connector End View (C1726) - CLUTCH MASTER CYLINDER PUSH ROD POSITION SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1726	CLUTCH MASTER CYLINDER PUSH ROD POSITION SENSOR	BK	14K733	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RE456 (BU-OG)	20	CTRL MOD. - SENSOR CLUTCH PEDAL	N/A
2	VE757 (WH)	20	SENSOR - INTERMEDIATE SHAFT SPEED (ISS)	N/A
3	LE456 (YE-BU)	20	CTRL MOD. - SENSOR CLUTCH PEDAL	N/A
4	*	*	Not Used	N/A

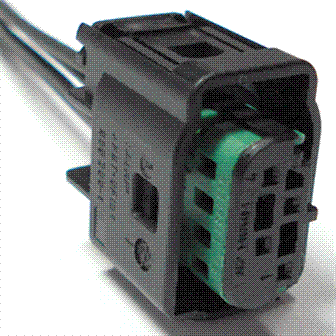

Available Pigtail Kits

Pigtail Kit Part Number WPT-1088

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-AFA

Gauge:

20

Pin material:

Tin (greased)

Cavities:

4

Vehicle Uses:

• Sensor - Yaw
