Rear Window Wiper Motor RH

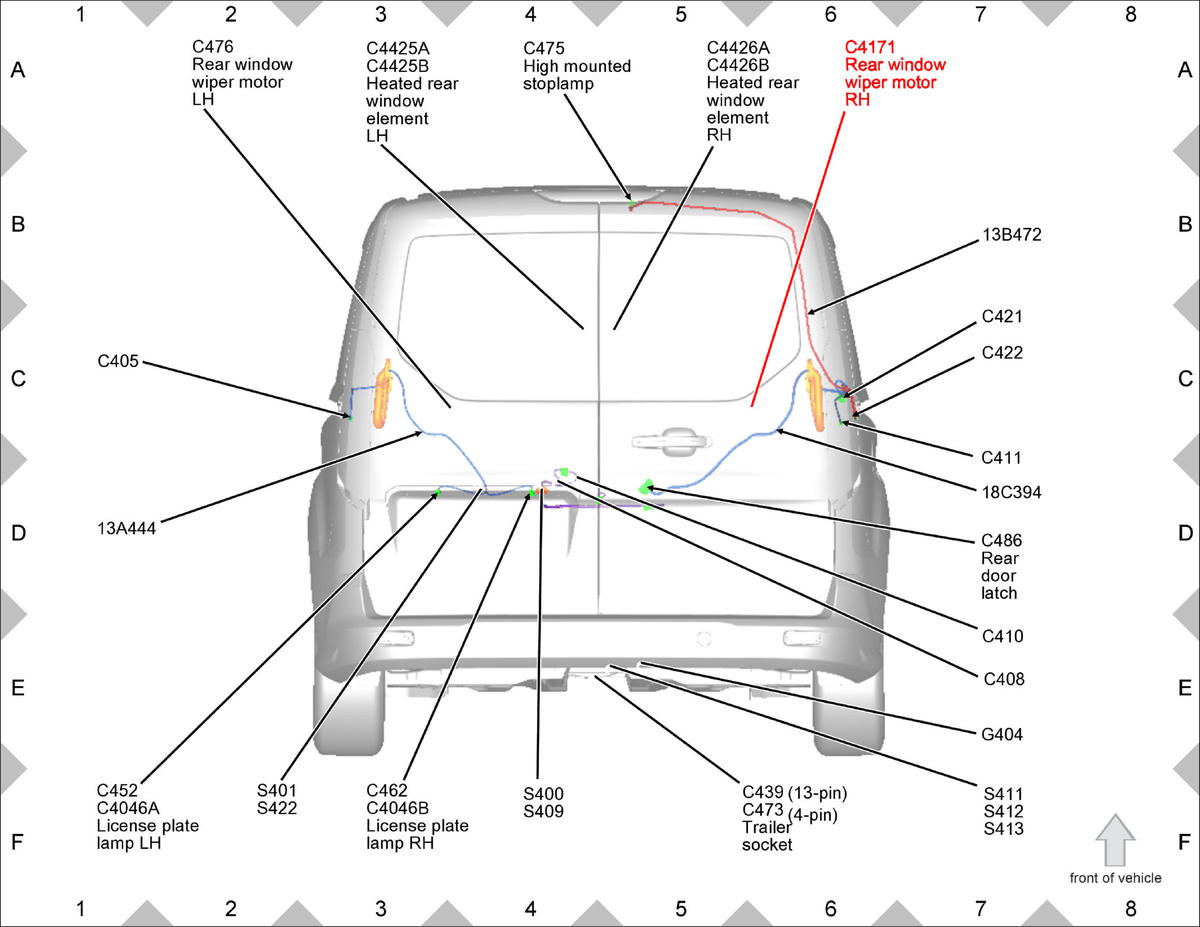

Fig 1: Rear Window Wiper Motor RH Components Location

GFDW86132

Courtesy of FORD MOTOR COMPANY
