Passenger Side Windshield Wiper Motor (LHD)

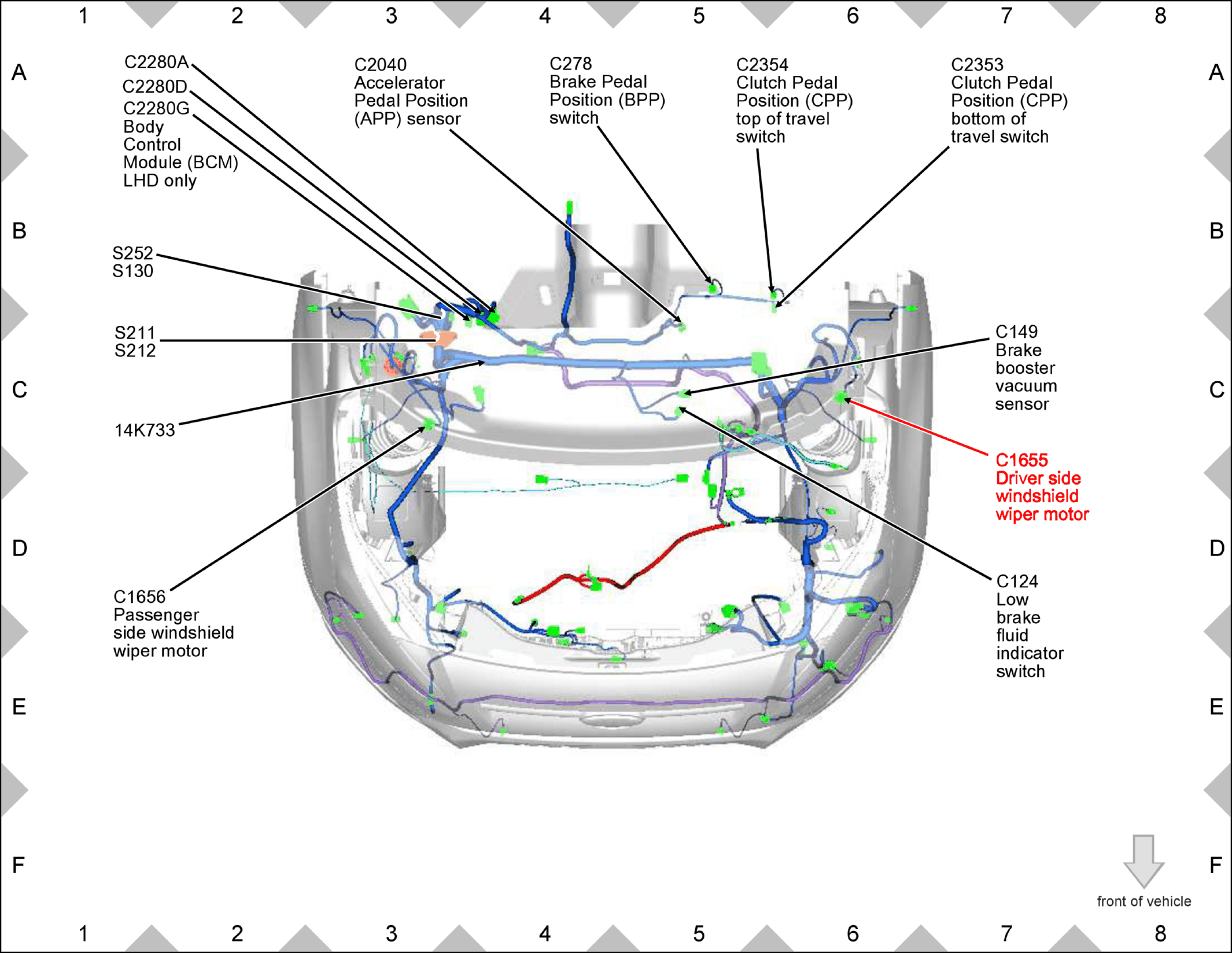

Fig 1: Passenger Side Windshield Wiper Motor (LHD) Components Location

GFDW64156

Courtesy of FORD MOTOR COMPANY
