Interior Lamp, Right Front (Sunroof)

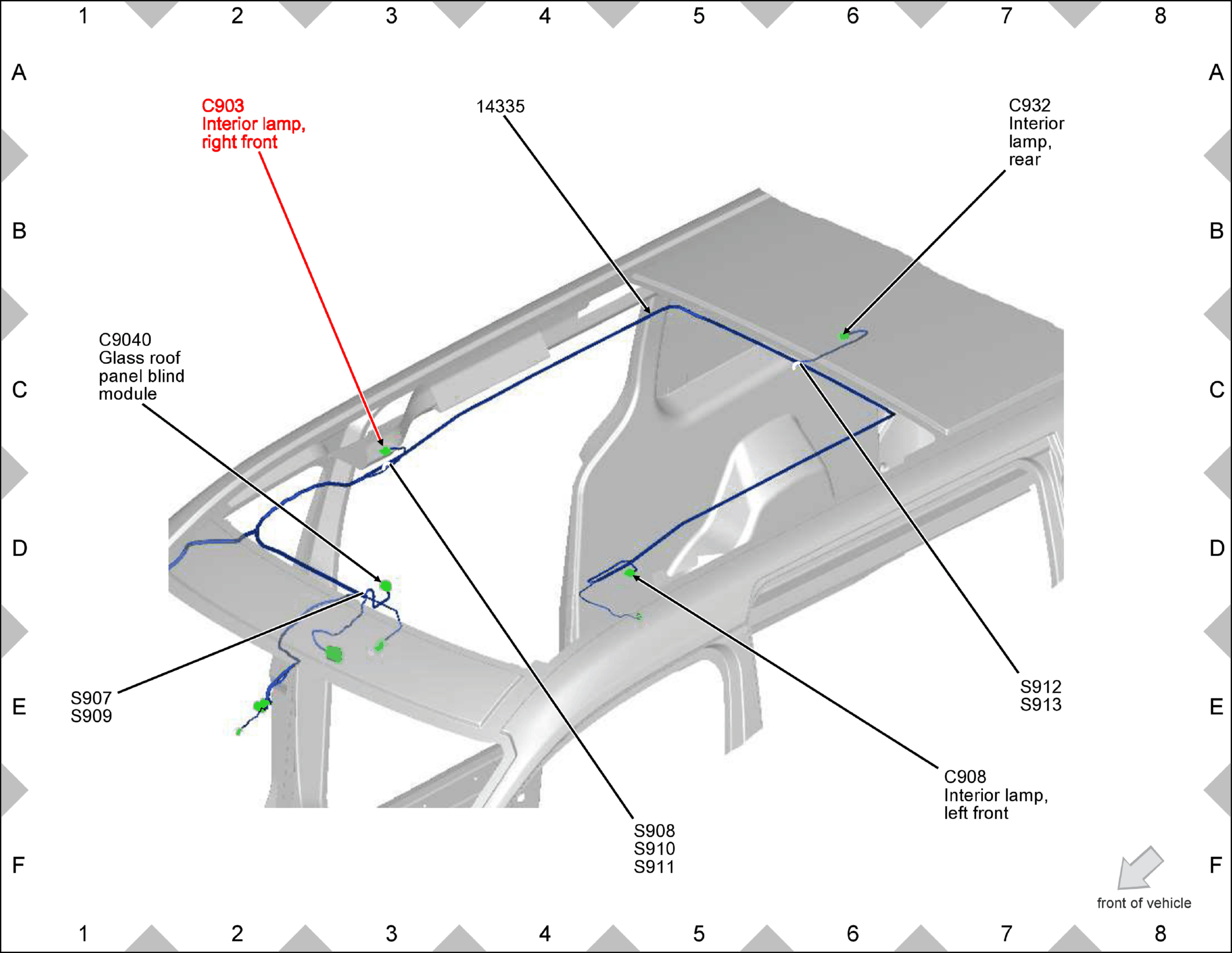

Fig 1: Interior Lamp, Right Front (Sunroof) Components Location

GFDW64289

Courtesy of FORD MOTOR COMPANY
