Electronic Throttle Control (ETC) (1.6L GTDI)

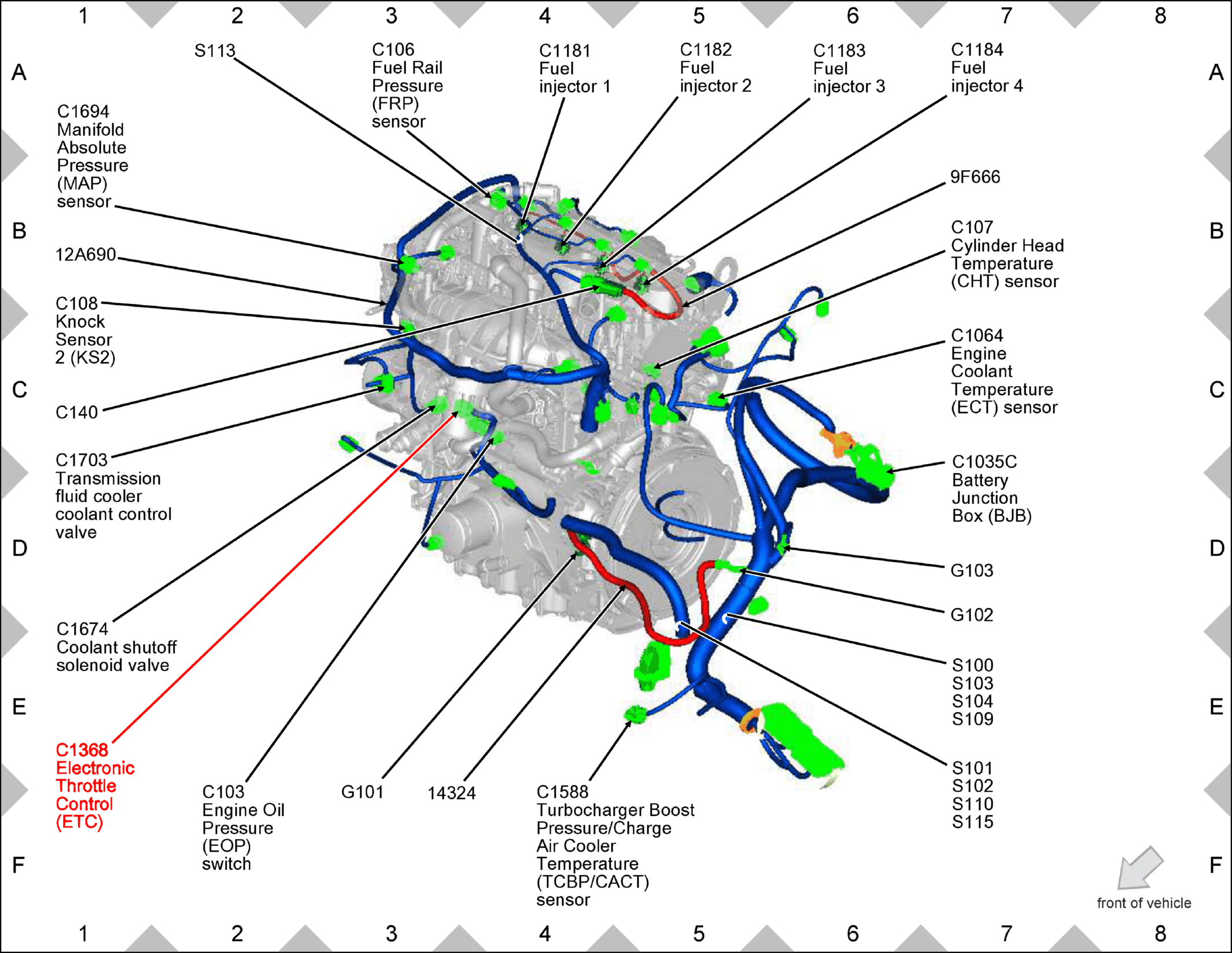

Fig 1: Electronic Throttle Control (ETC) (1.6L GTDI) Components Location

GFDW64163

Courtesy of FORD MOTOR COMPANY
