Electronic Throttle Control (ETC) (1.5L DV5)
Electronic Throttle Control (ETC) (1.5L DV5)

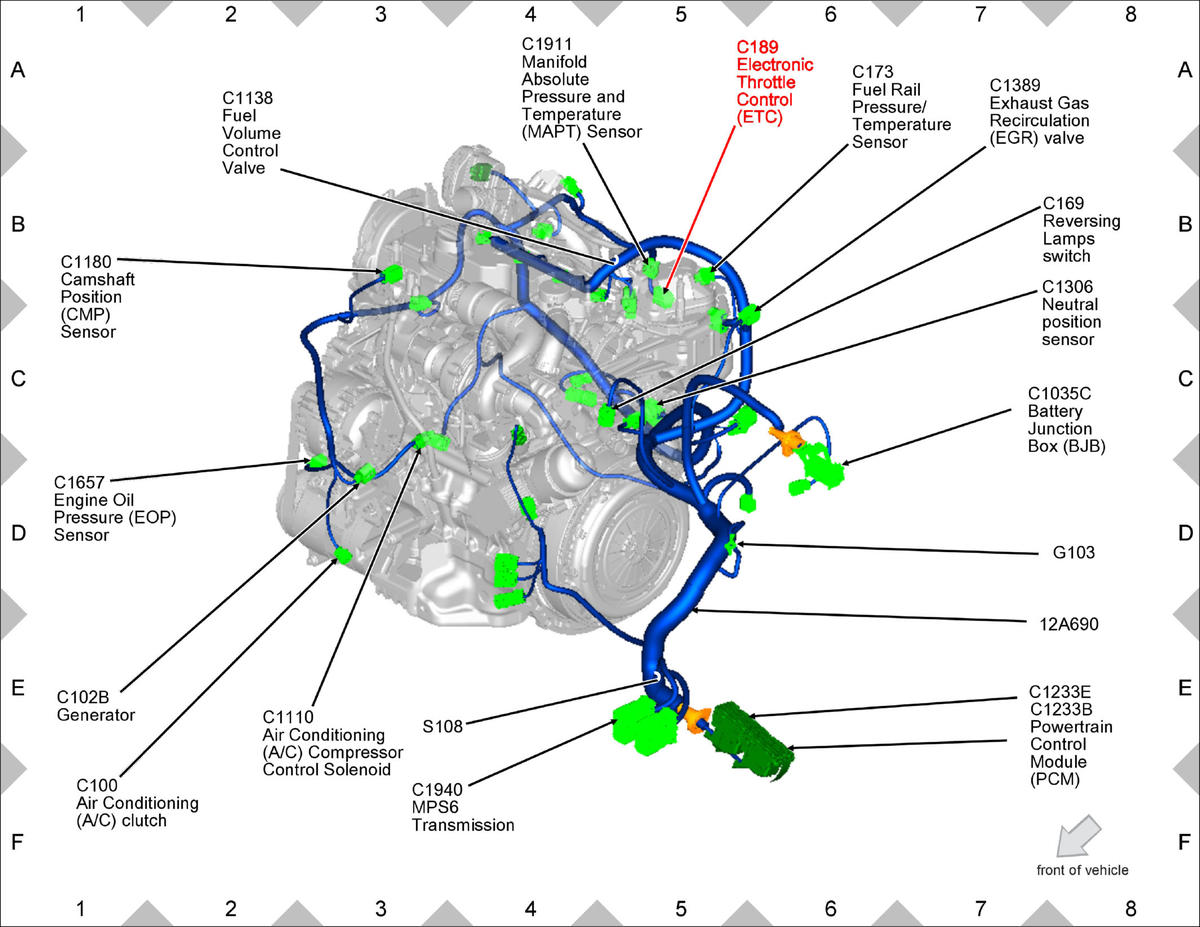

Fig 1: Electronic Throttle Control (ETC) (1.5L DV5) Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
