Driver Side Air Curtain
Driver Side Air Curtain

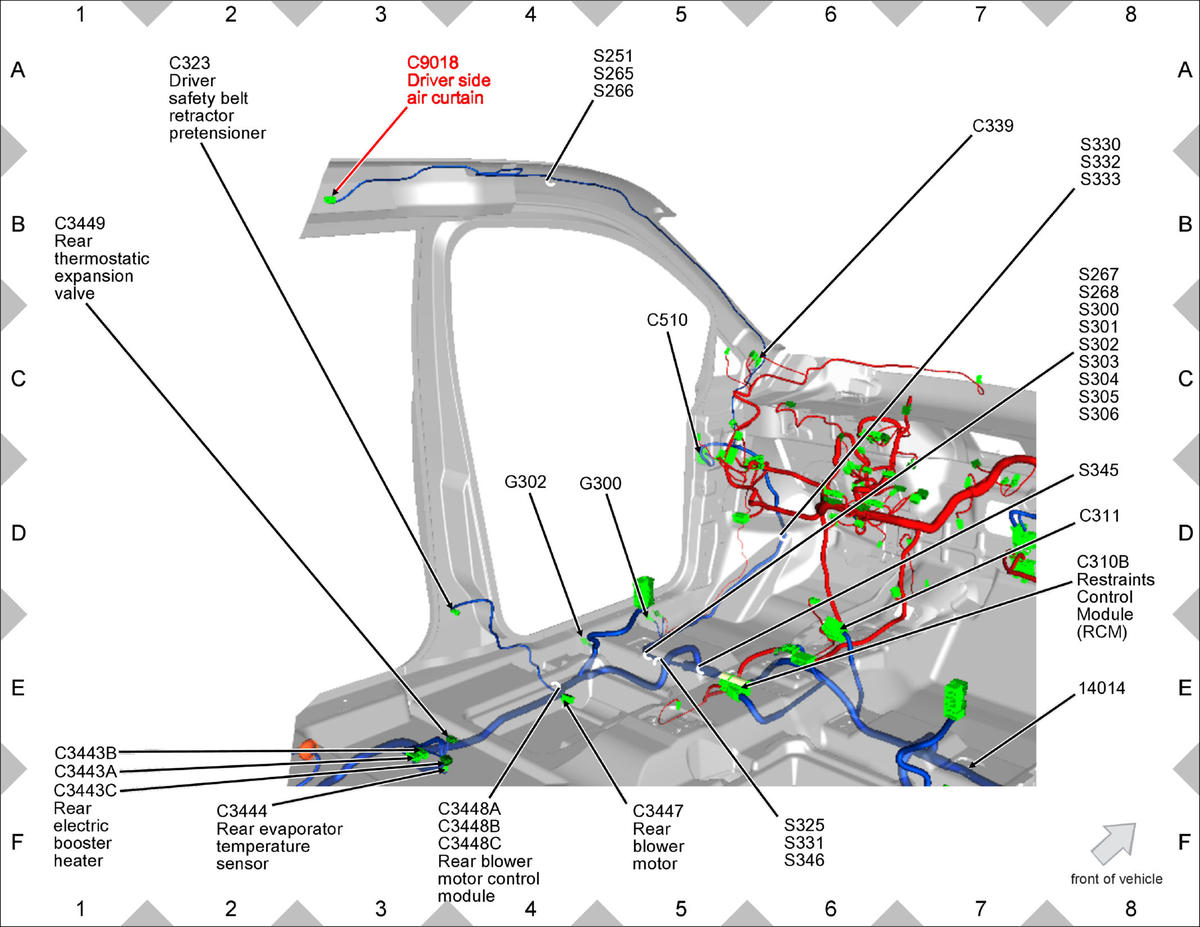

Fig 1: Driver Side Air Curtain Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
