Crankshaft Position (CKP) Sensor (2.5L)

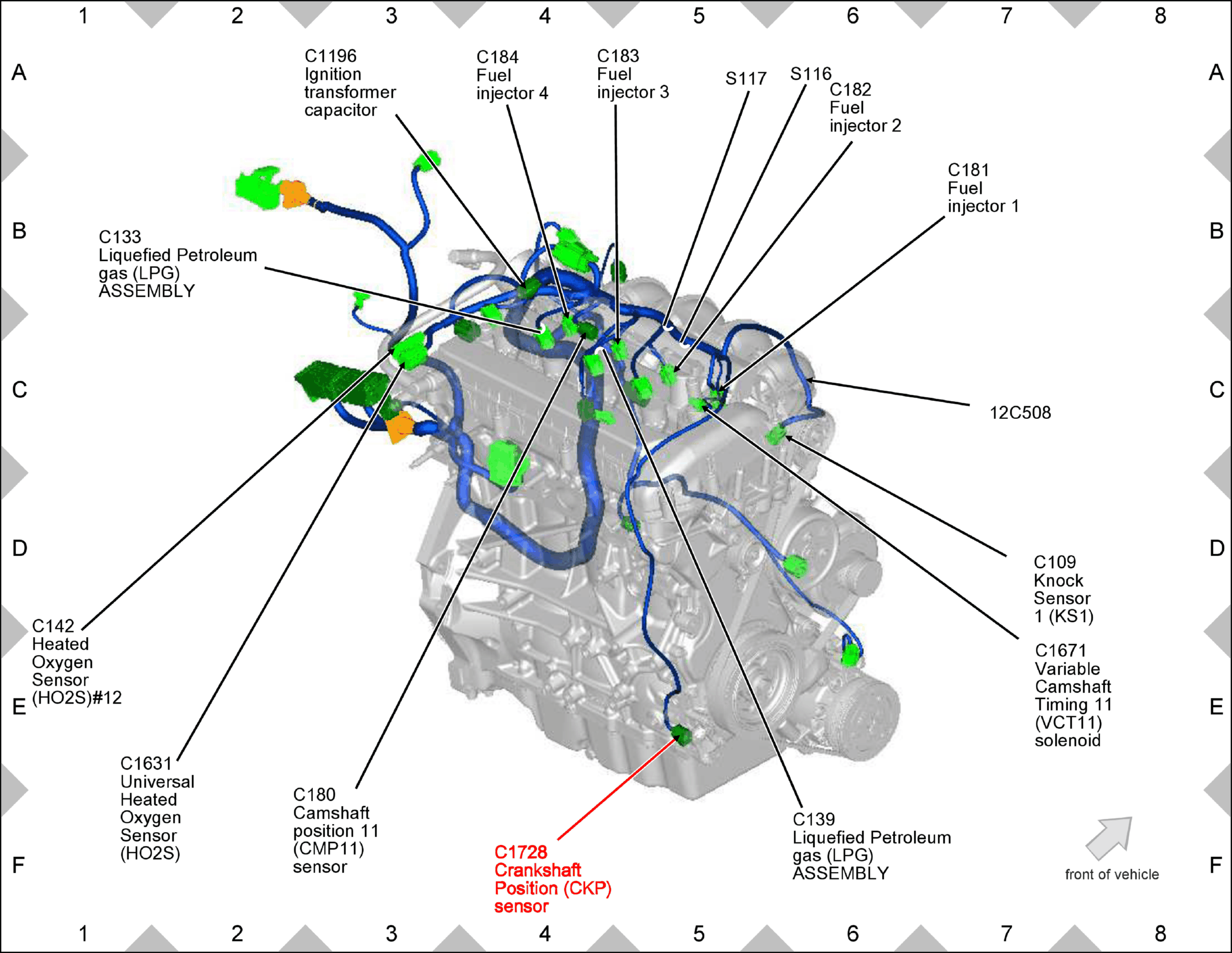

Fig 1: Crankshaft Position (CKP) Sensor (2.5L) Components Location

GFDW64135

Courtesy of FORD MOTOR COMPANY
