Camshaft Position (CMP) Sensor (1.5L DV5)

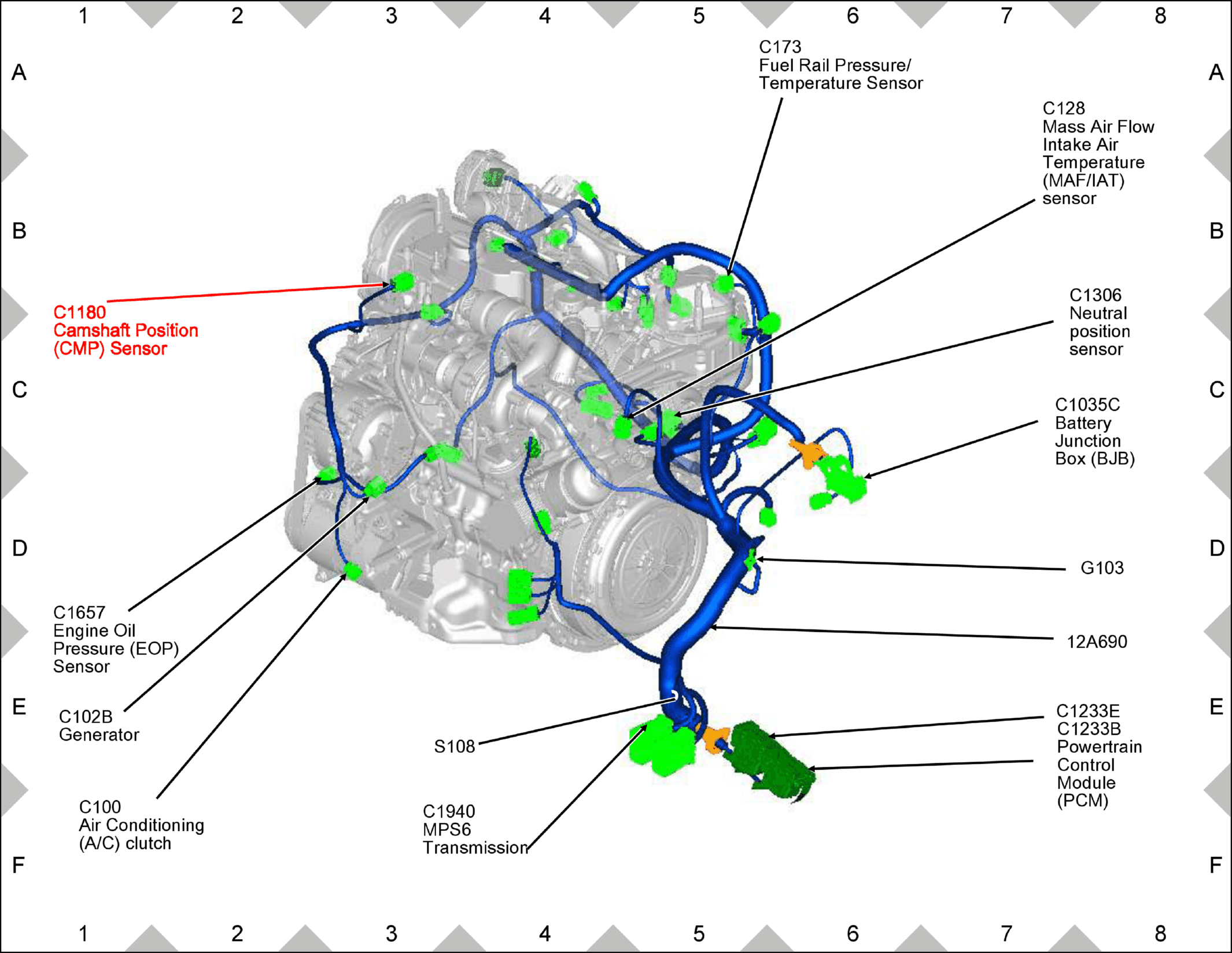

Fig 1: Camshaft Position (CMP) Sensor (1.5L DV5) Components Location

GFDW64116

Courtesy of FORD MOTOR COMPANY
