Brake Pedal Position (BPP) Switch (RHD)

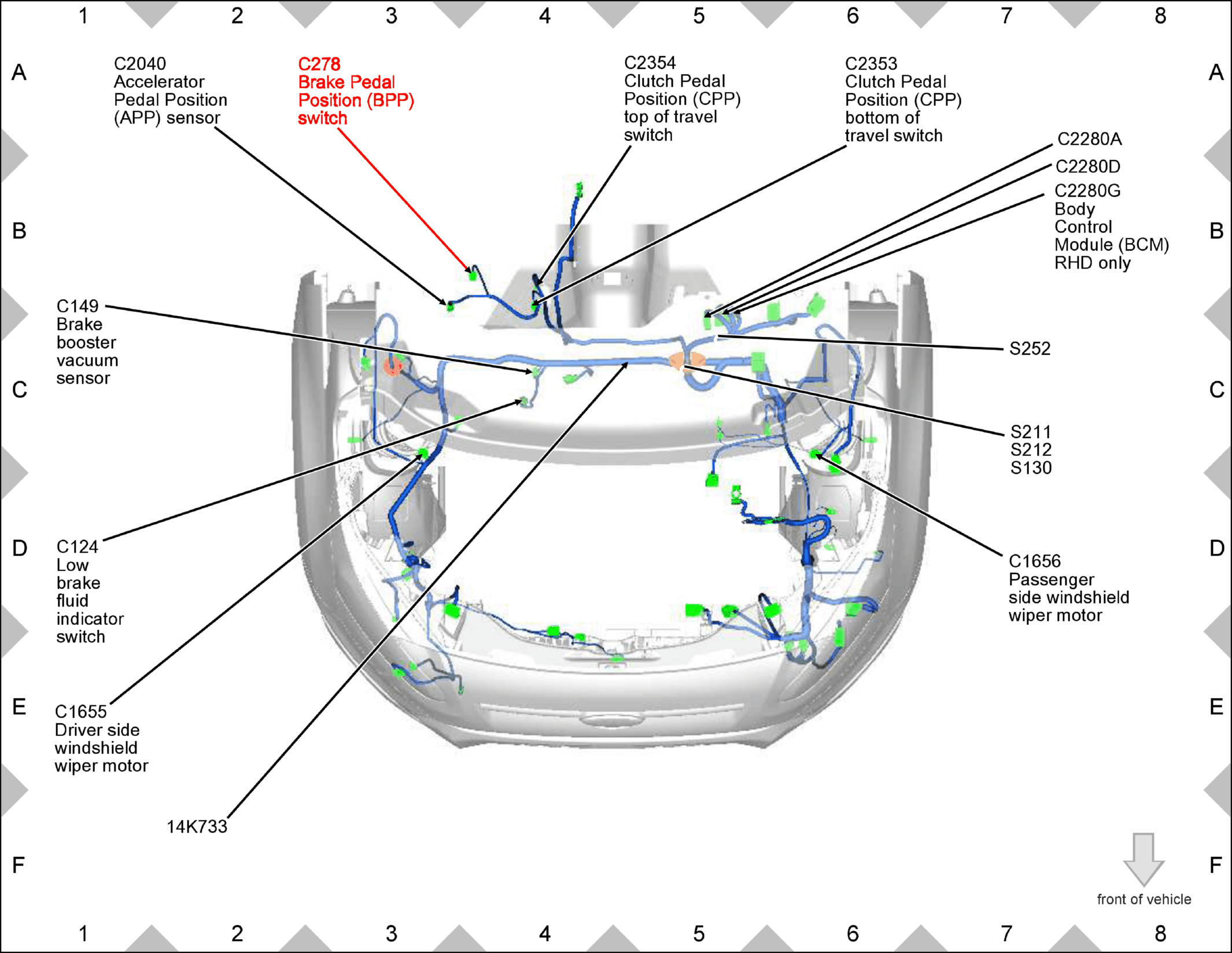

Fig 1: Brake Pedal Position (BPP) Switch (RHD) Components Location

GFDW64115

Courtesy of FORD MOTOR COMPANY
