Battery Junction Box (BJB) (1.6L GTDI)

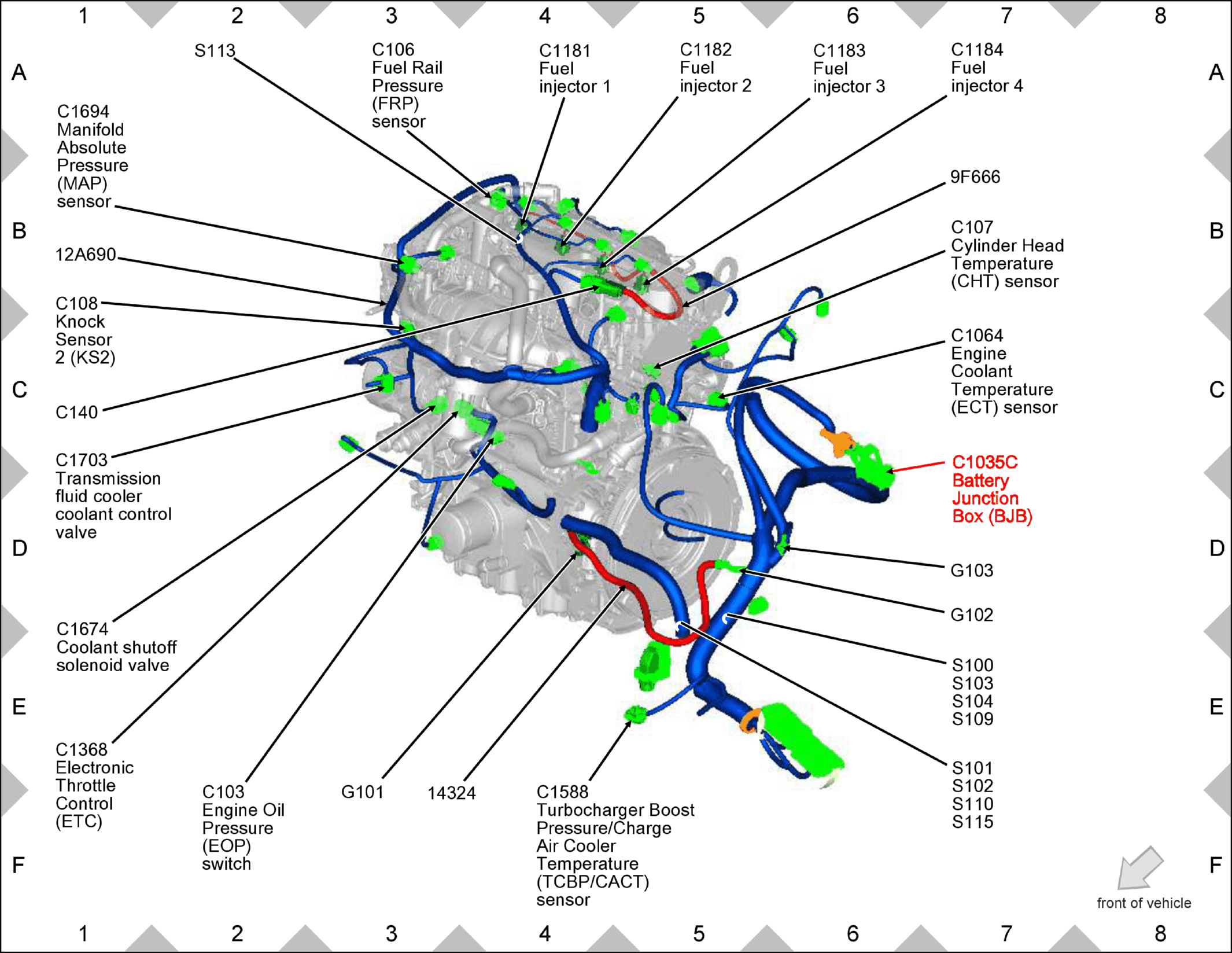

Fig 1: Battery Junction Box (BJB) (1.6L GTDI) Components Location

GFDW64104

Courtesy of FORD MOTOR COMPANY
