System Diagram

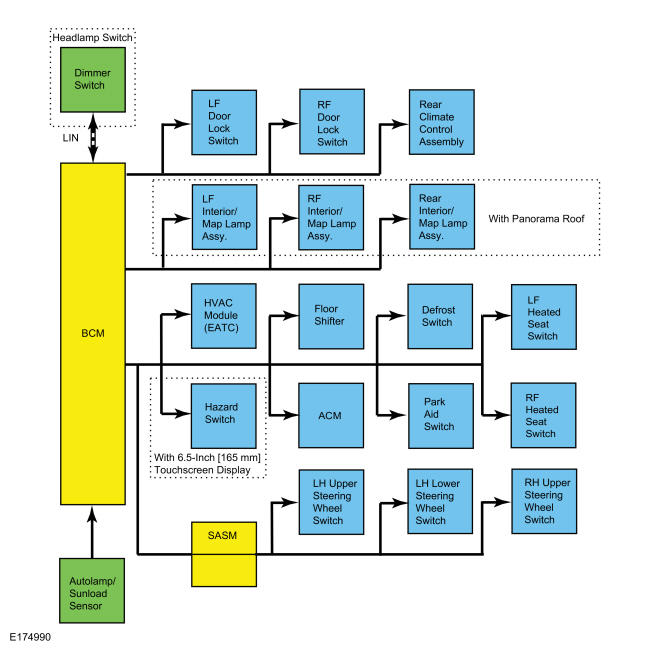

Non-Networked Illumination

GFD215804Courtesy of FORD MOTOR COMPANY

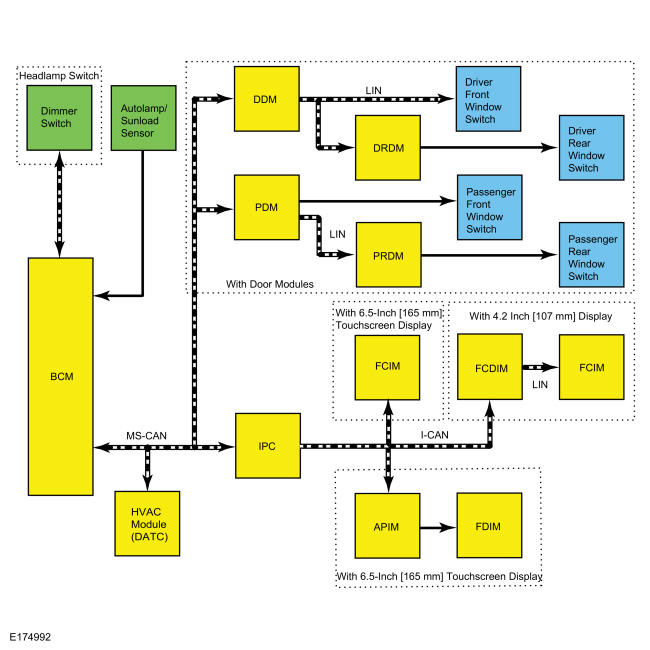

Networked Illumination

GFD215805Courtesy of FORD MOTOR COMPANY
