Brakes
>>
Parking Brake System - Parking Brake And Actuation
>>
Description And Operation
>>
Parking Brake - Overview
>>
General overview

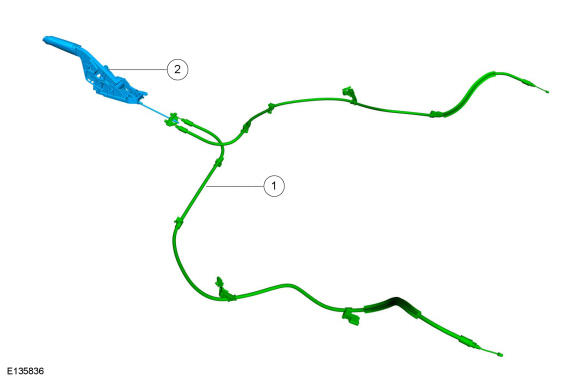

General overview
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Parking brake cable
2
Parking brake handle
The following components may be renewed separately:
Parking brake cable
Parking brake handle
Courtesy of FORD MOTOR COMPANY
