Rear Brake Flexible Hose: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Remove wheel and tire. Refer to: Wheel and Tire .
-
NOTE: Make sure that no load is placed on the brake hose.

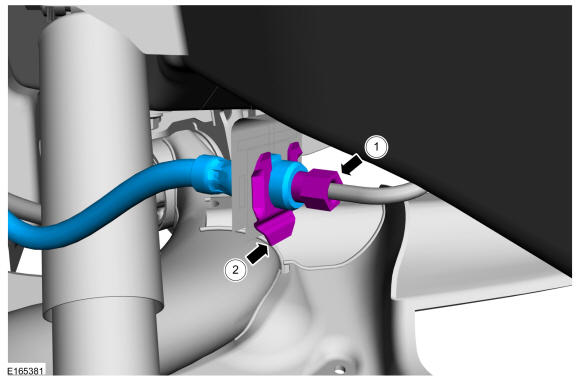

Remove the brake hose bracket bolt, loosen the fitting and disconnect brake hose from the brake caliper.
-
- Disconnect the brake tube fitting.
- Remove the clip and the flexible brake hose.
