Accessory Drive - Component Location

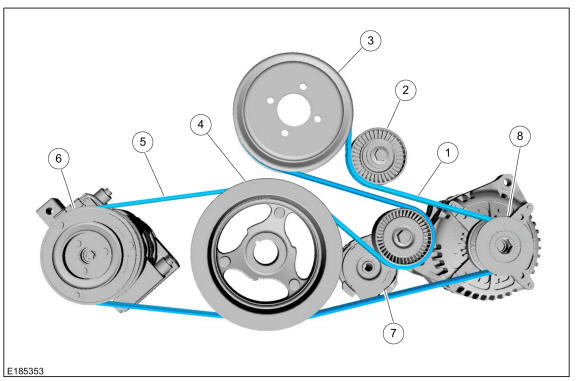

Fig 1: Accessory Drive Belt Routing

Courtesy of FORD MOTOR COMPANY

Item	Description
1	Accessory drive belt
2	Drive belt idler pulley assembly
3	Coolant pump pulley
4	Crankshaft belt pulley
5	Belt - A/C compressor
6	Pulley - A/C compressor
7	Accessory drive belt tensioner
8	Generator pulley
